Occupant Classification Sensor

  1. Check the occupant classification-ECU case and occupant classification sensor for dents, cracks or deformation.
  2. Check the connector for damage, and the terminals for deformation.
  3. Check the installation of the occupant classification-ECU and occupant classification sensor.

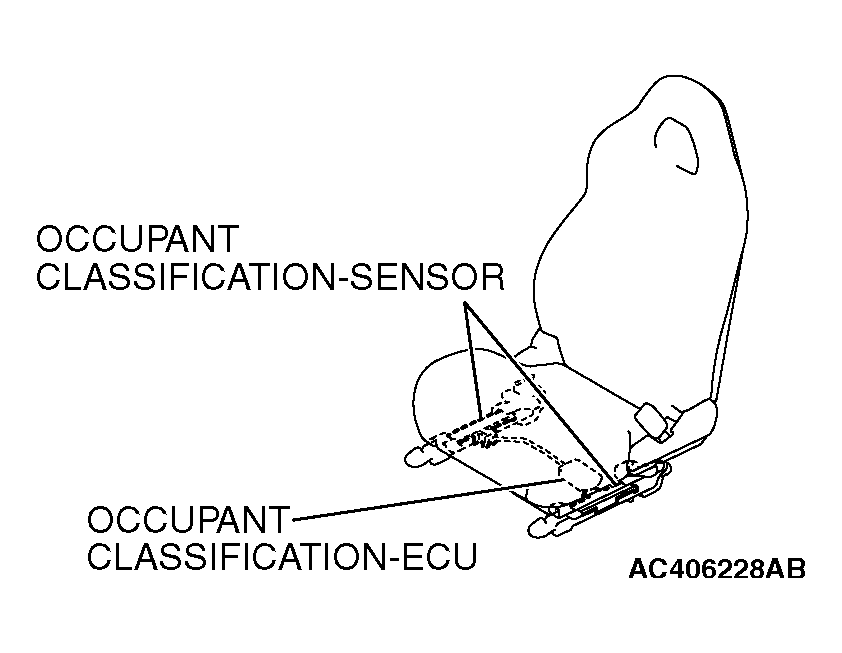

    Fig 1: Identifying Occupant Classification Sensor & ECU
    G04238571Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
