DTC 11: Transponder Communication System or Radio Interference of Encrypted Code: Notes

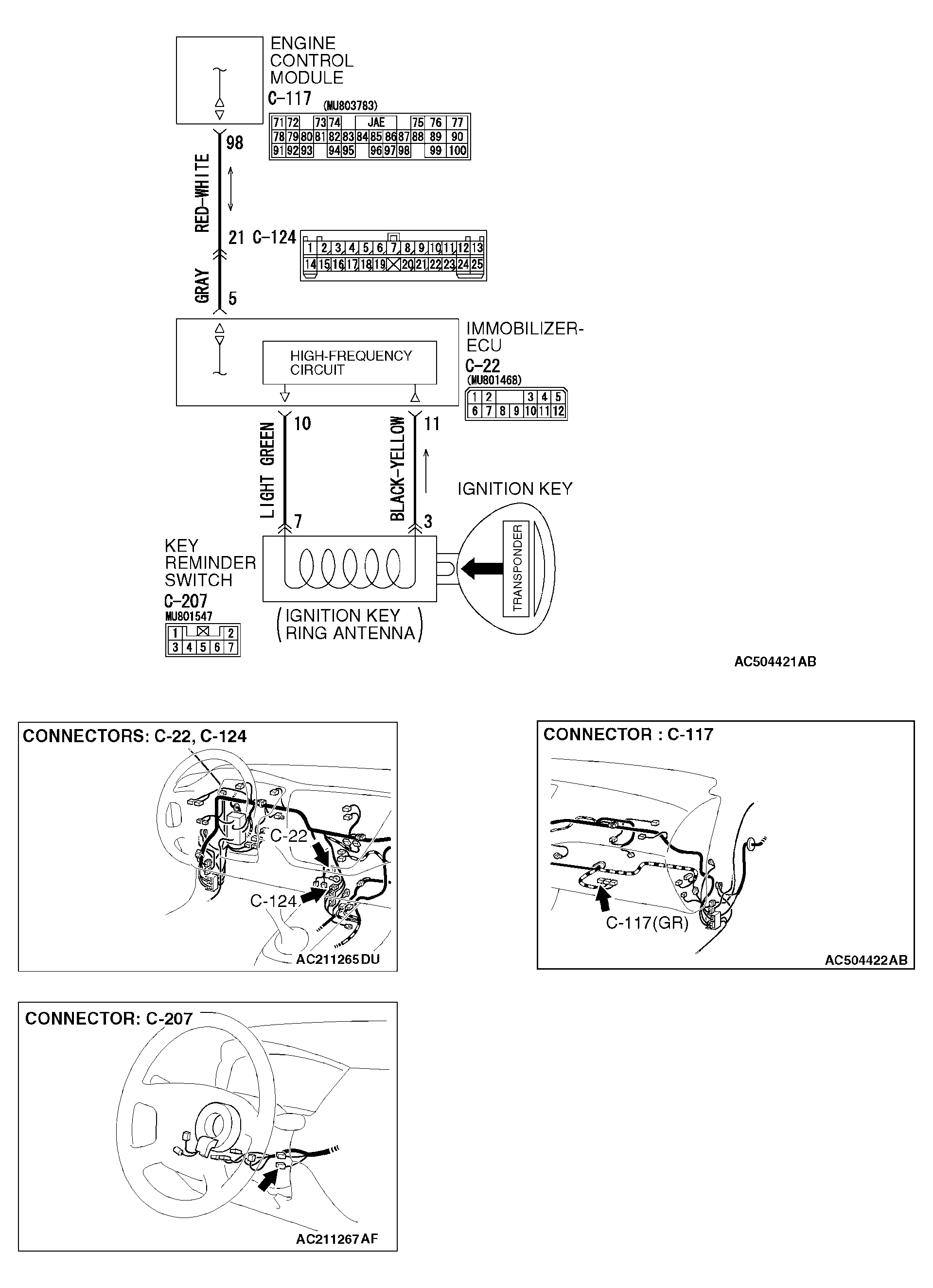

Fig 1: Identifying Transponder Communication System Circuit
G04298249Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
