INSPECTION PROCEDURE 1: Communication with Scan Tool MB991958 is Impossible.: Notes

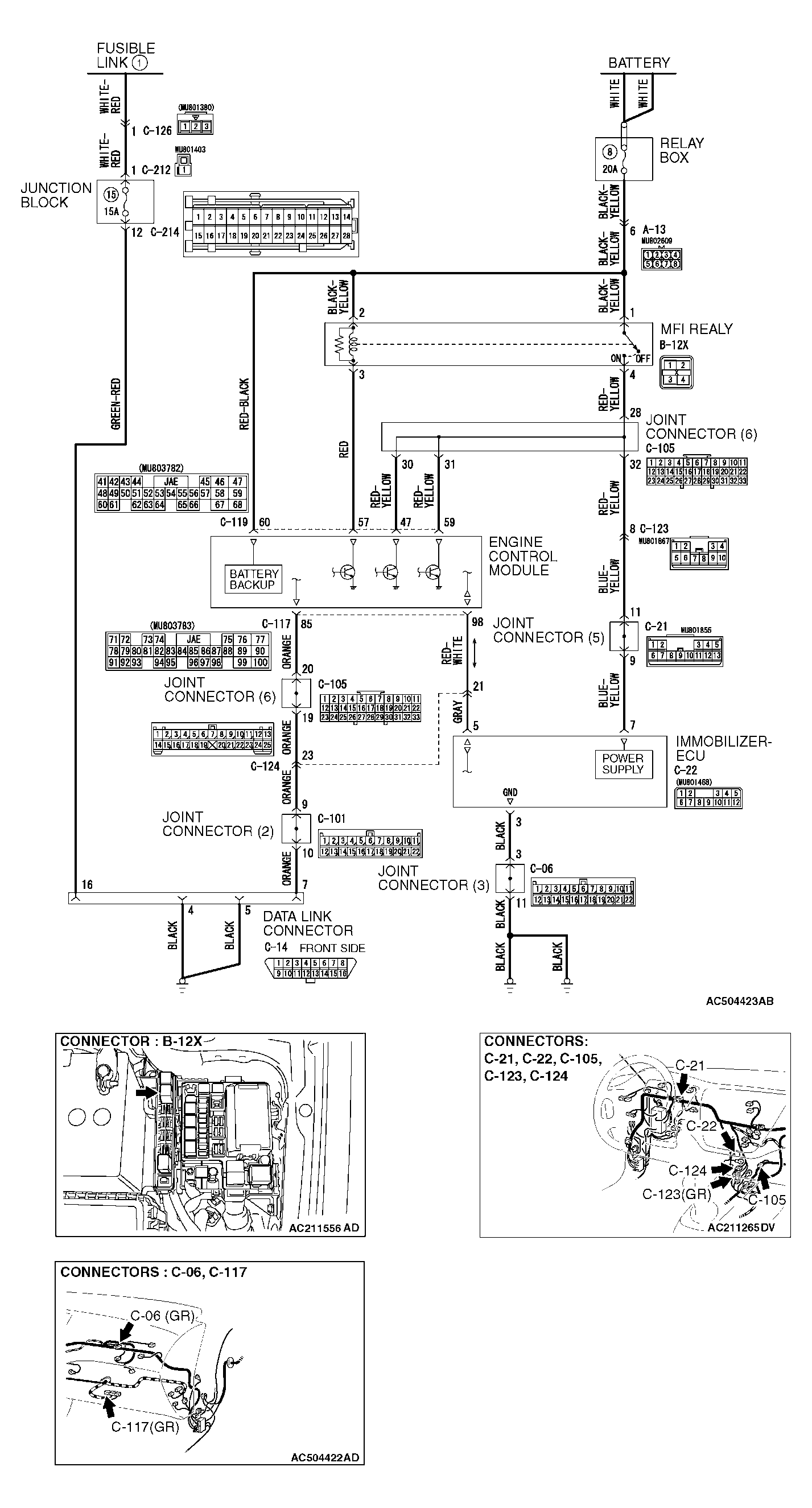

Fig 1: Communication With Scan Tool Mb991958 Circuit
G04298259Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
