DTC 81: Steering Angular Velocity Sensor (ST-1) System: DTC 82: Steering Angular Velocity Sensor (ST-2) System: DTC 83: Steering Angular Velocity Sensor (ST-N) System: Notes

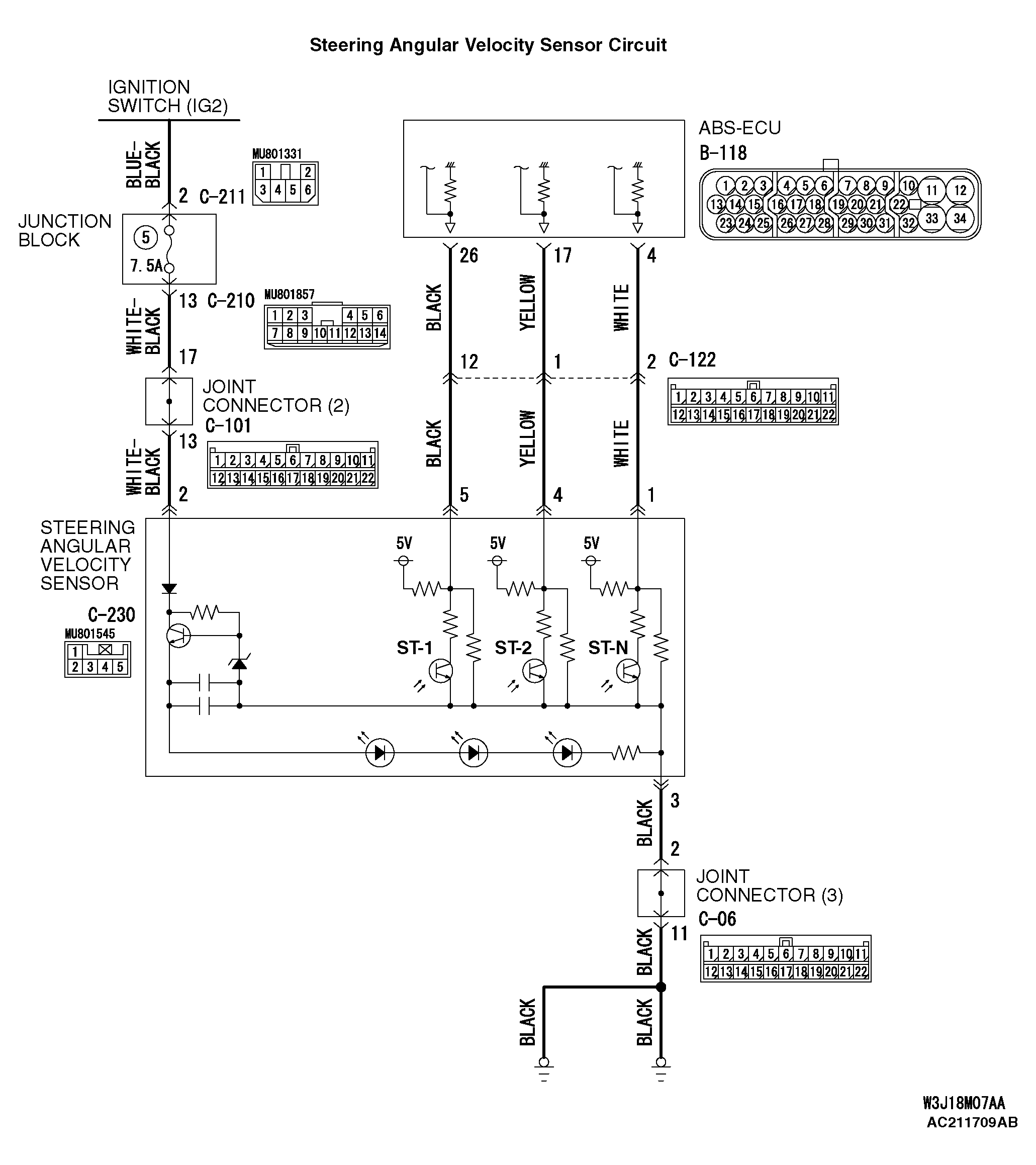

Fig 1: Steering Angular Velocity Sensor Circuit Diagram (1 Of 2)
G04297414Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Steering Angular Velocity Sensor Circuit Diagram (2 Of 2)
G04297415Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
