INSPECTION PROCEDURE 6: The Neutral Position Learning of the Steering Angular Velocity Sensor is not Detected.: Notes

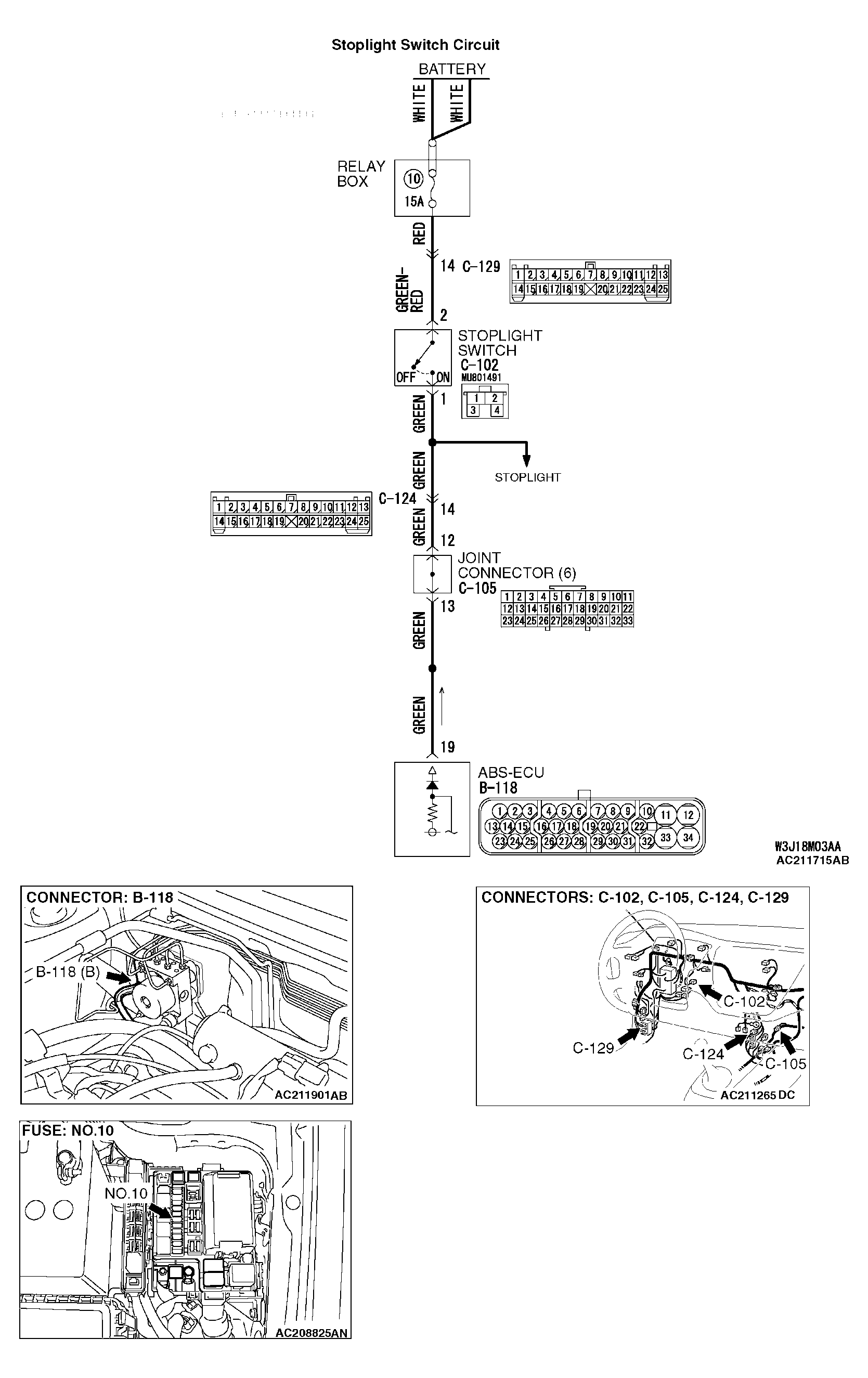

Fig 1: Stoplight Switch Circuit Diagram
G04297494Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
