INSPECTION PROCEDURE 1: Speedometer does not Work.: Notes

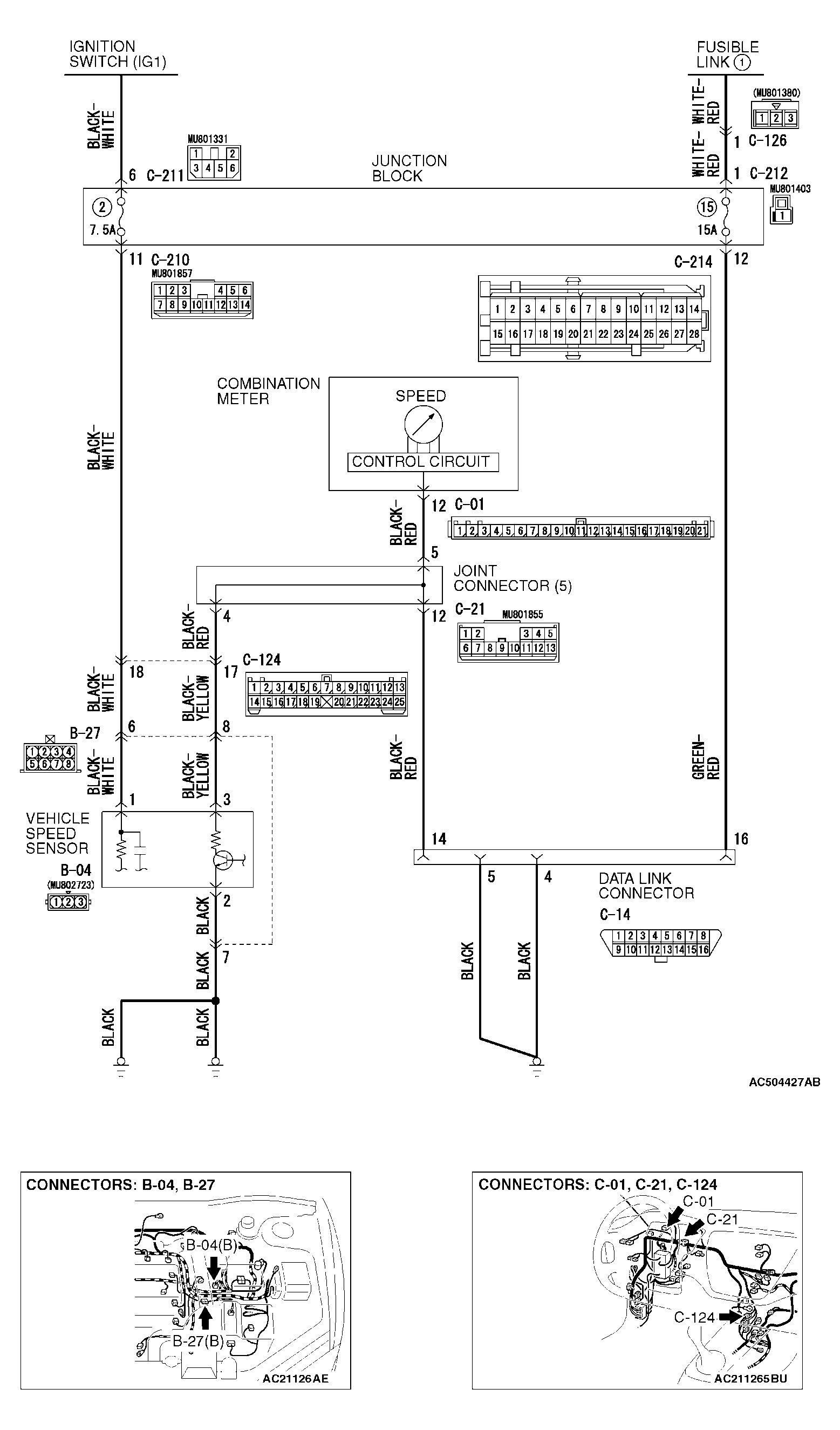

Fig 1: Identifying Speedometer Circuit
G04298318Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
