<< E >> Passenger's (Front) Air Bag Module Removal

WARNING:
  • When the passenger's (front) air bag module is removed, do not damage the engagement of the pawls.
  • The removed passenger's (front) air bag module should be stored in a clean, dry place with the deployment surface facing up.

Insert the screwdriver (-) into the position specified in the figure and lift the screwdriver upward to release the pawls engaged, and then remove the passenger's (front) air bag module.

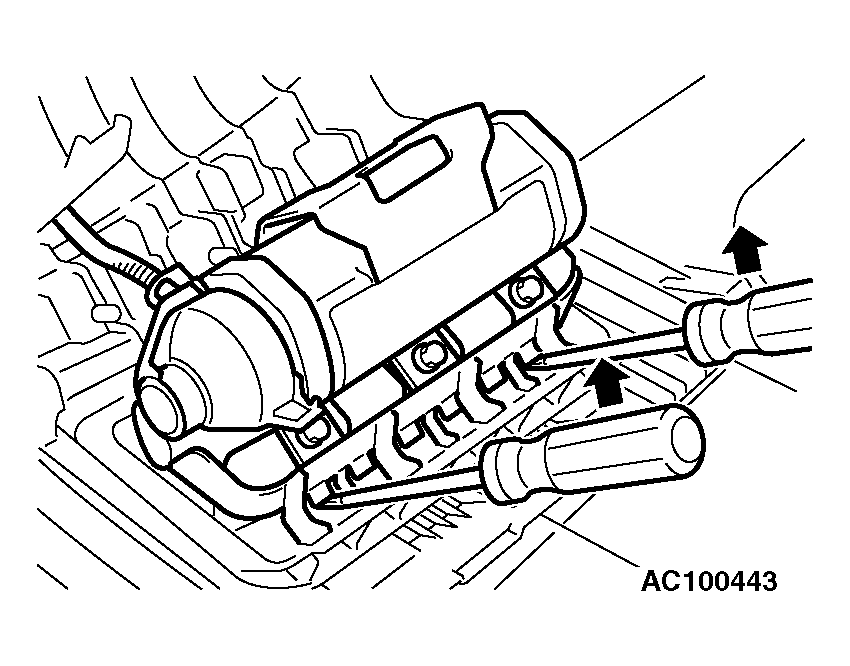

Fig 1: Inserting Screwdriver (-) Into Passenger's (Front) Air Bag Module
G04298205Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
