>> C << Rack Assembly Installation

CAUTION: Do not close the vent hole in the rack with grease.
  1. Apply a coating of multipurpose grease to the rack teeth face.
    Fig 1: Applying Coating Of Multipurpose Grease To Rack Teeth Face
    G04297624Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Cover rack serrations with special tool MB991214.
  3. Apply GENUINE MITSUBISHI POWER STEERING FLUID to special tool MB991214.
  4. Align the center of the oil seal with the rack to prevent the retainer spring from slipping. Slowly insert the rack from power cylinder side.

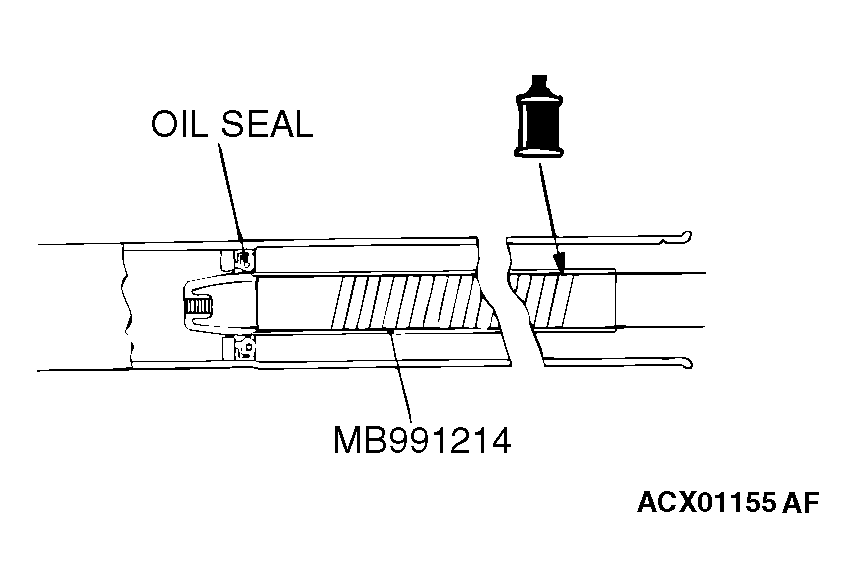

    Fig 2: Applying Genuine Mitsubishi Power Steering Fluid To Special Tool
    G04297625Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
