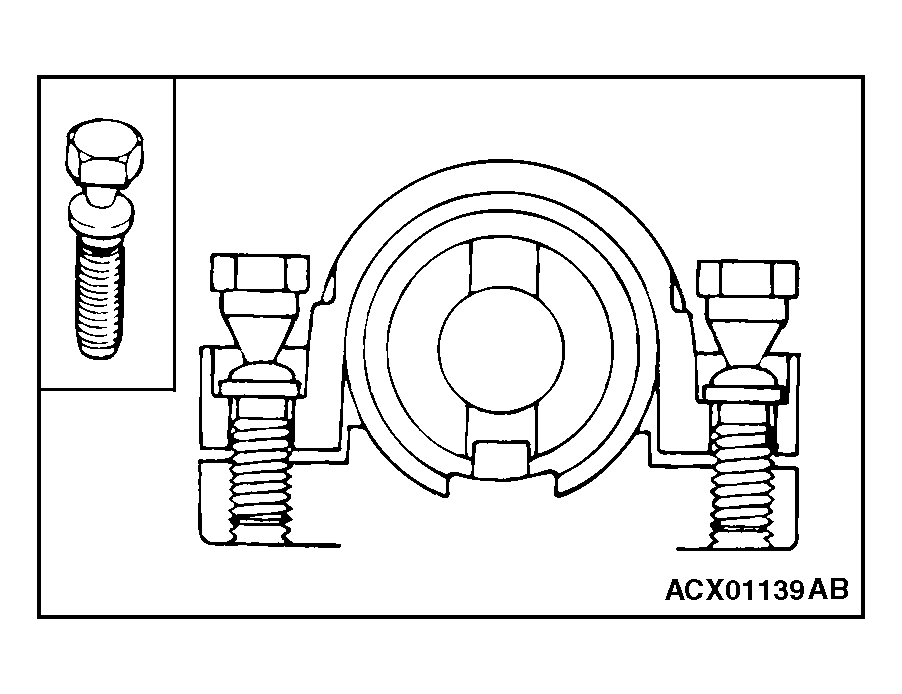

<< A >> Steering Lock Cylinder Assembly/Steering Lock Bracket/Special Bolt Installation
CAUTION:
The bolts must be replaced with new ones when the steering lock is installed.
- When installing the steering lock cylinder and steering lock bracket to the steering column assembly, temporarily install the steering lock in alignment with the column boss.
- After checking that the lock works properly, tighten the special bolts until the head is twisted off.
