>>D<< Synchronizer Spring Installation

Install the synchronizer spring onto the synchronizer ring as shown.

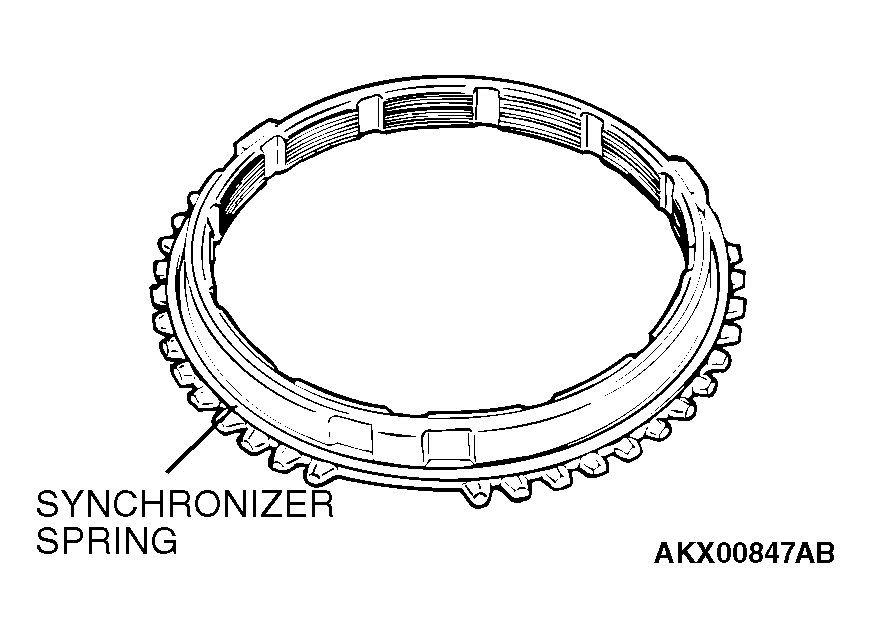

Fig 1: Identifying Synchronizer Ring
G04275825Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
