>> I << End Plug Installation

  1. Apply 3M™ AAD Part number 8661, 8663, 8672, 8678, 8679 or equivalent to the threaded part of the end plug.
  2. Secure the threaded portion of the end plug at two places by using a punch.

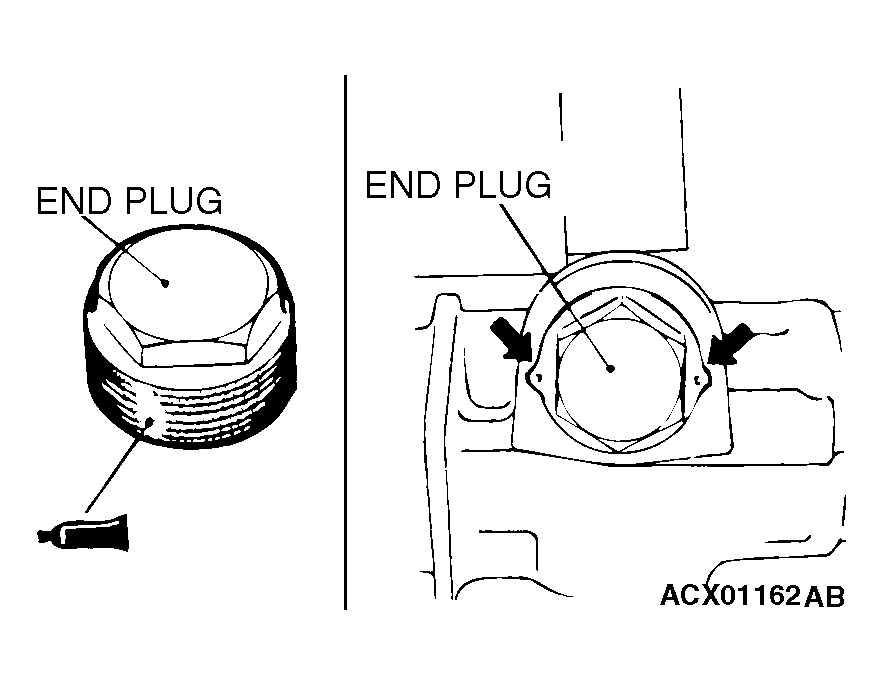

    Fig 1: Applying 3M™ To Threaded Part Of End Plug
    G04297632Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
