Removal And Installation: Notes

CAUTION: The accelerator pedal position sensor is preadjusted precisely at factory. Whenever the accelerator pedal position sensor is removed and installed, it should be adjusted.

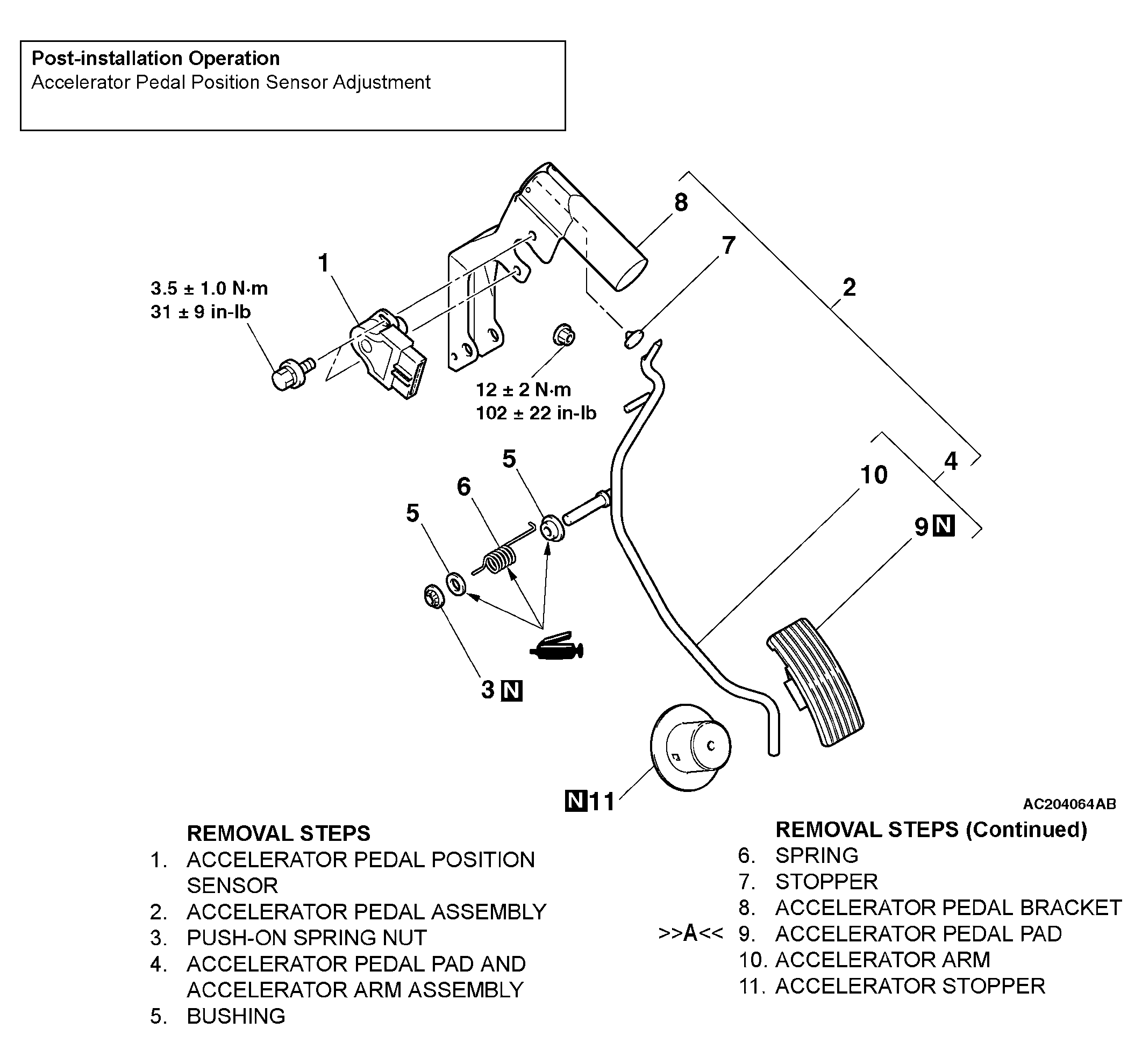

Fig 1: Removing/Installing Accelerator Cable And Pedal
G04265146Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
