Disassembly And Assembly: Notes

< V5A51 >

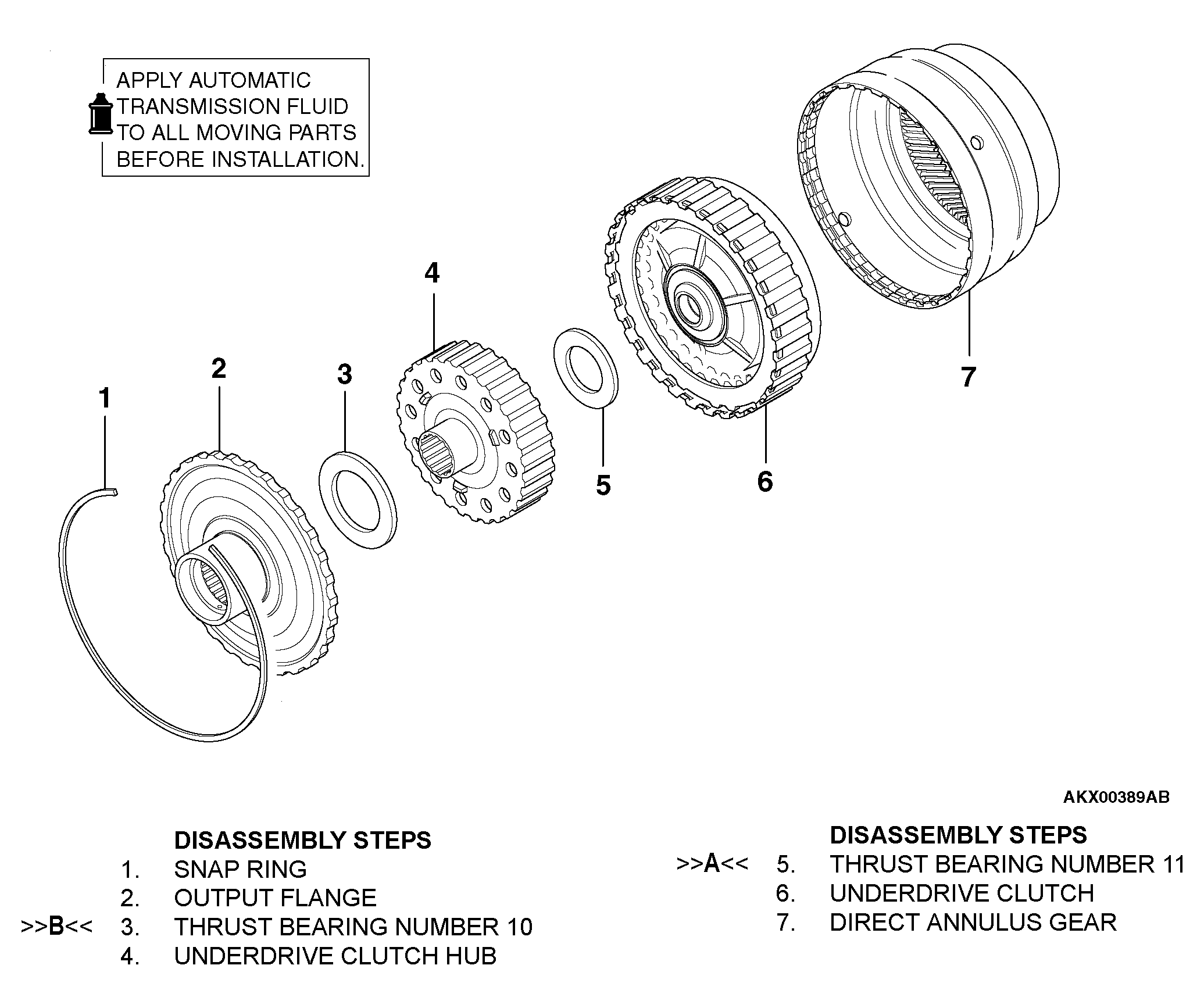

Fig 1: Disassembling/Assembling Direct Annulus Gear
G04266476Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
