Input Signal Chart

INPUT SIGNAL CHART

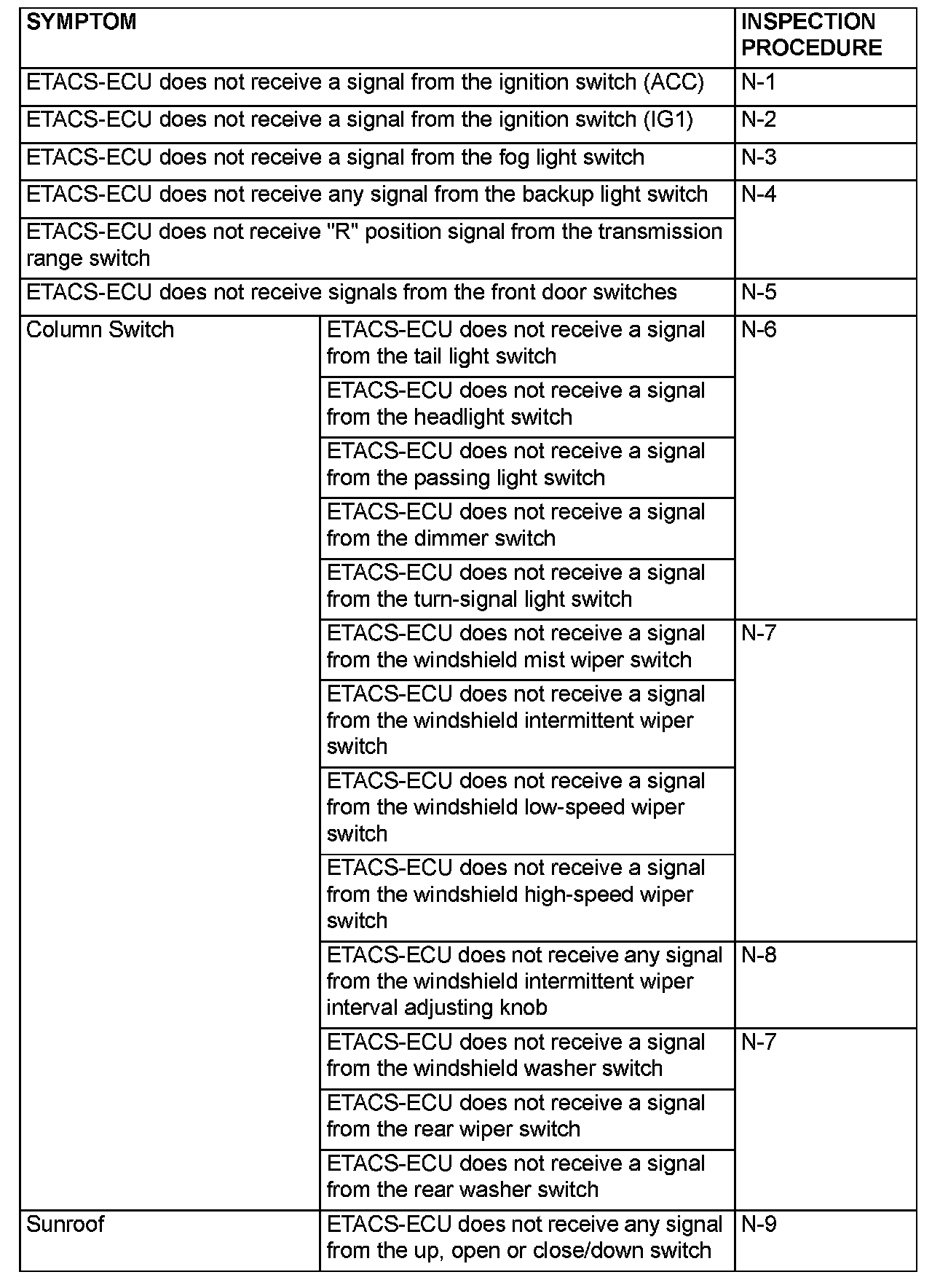

SWS Monitor:





If a problem is found in the Service Data inspection, observe the table.

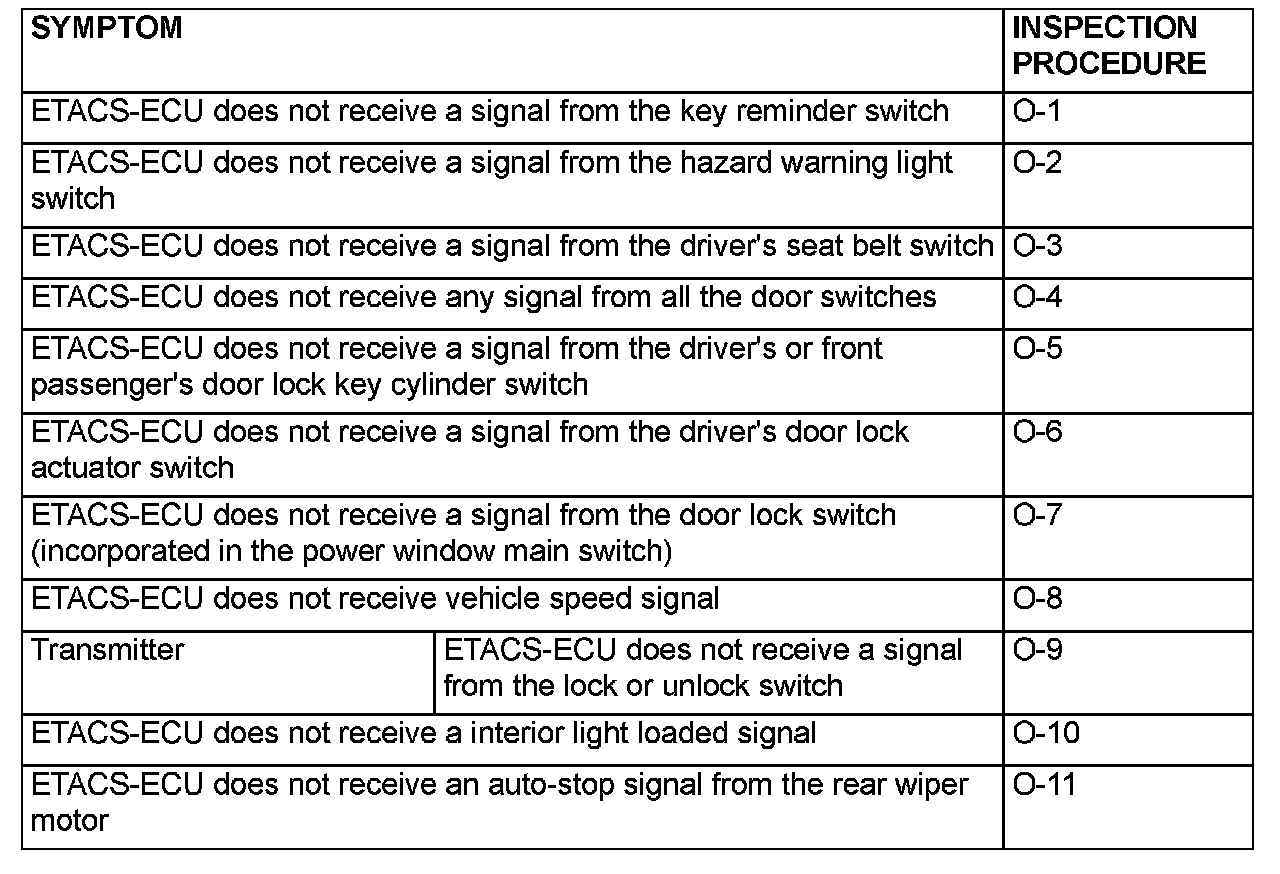

Scan Tool Or Voltmeter:





If a problem is found in the Pulse Check, observe the table.
