Input Signal Chart
INPUT SIGNAL CHART
Input Signal Chart:

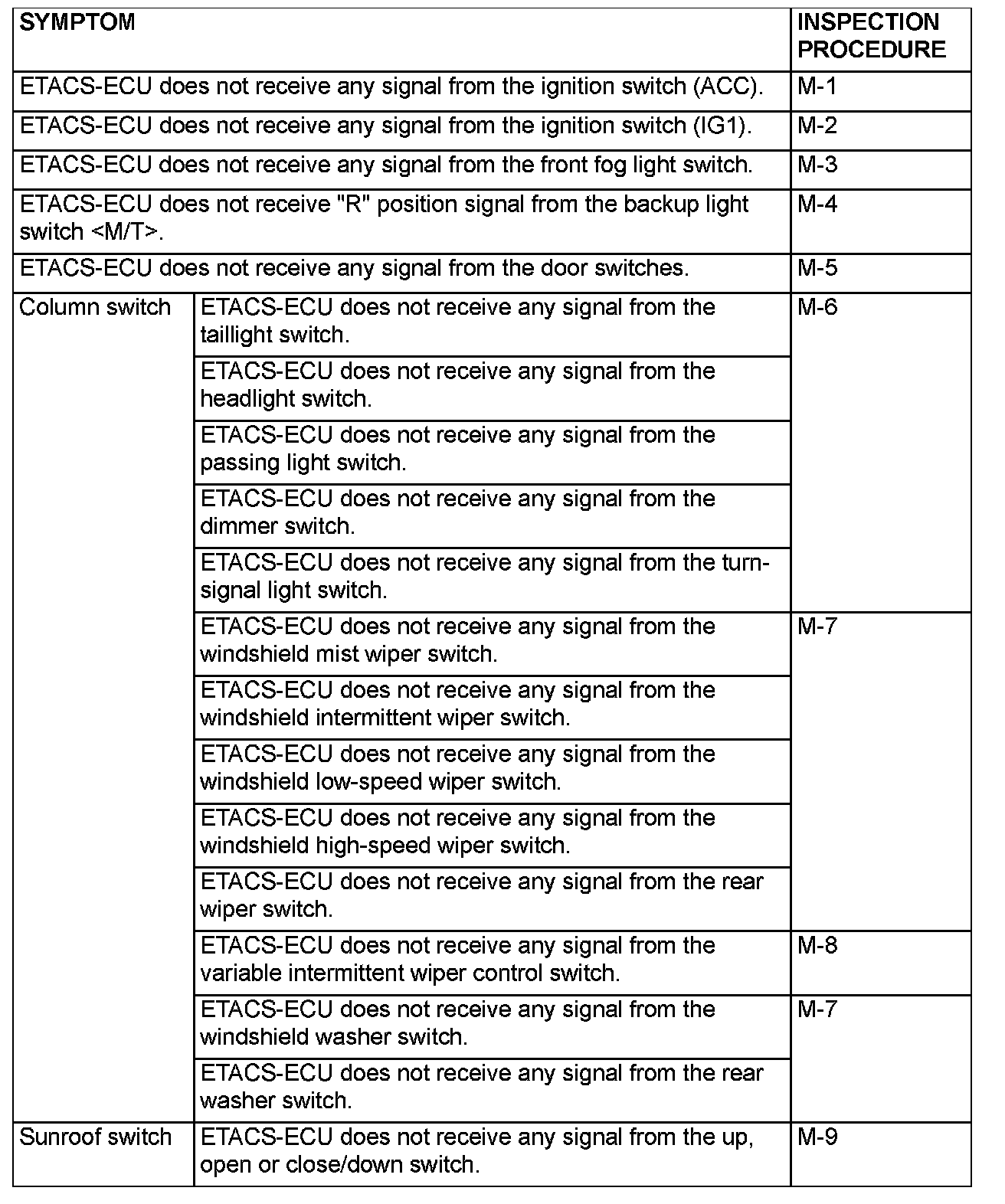

SWS MONITOR
If a problem is found in the Data List inspection, observe the table.
Scan Tool Or Voltmeter:

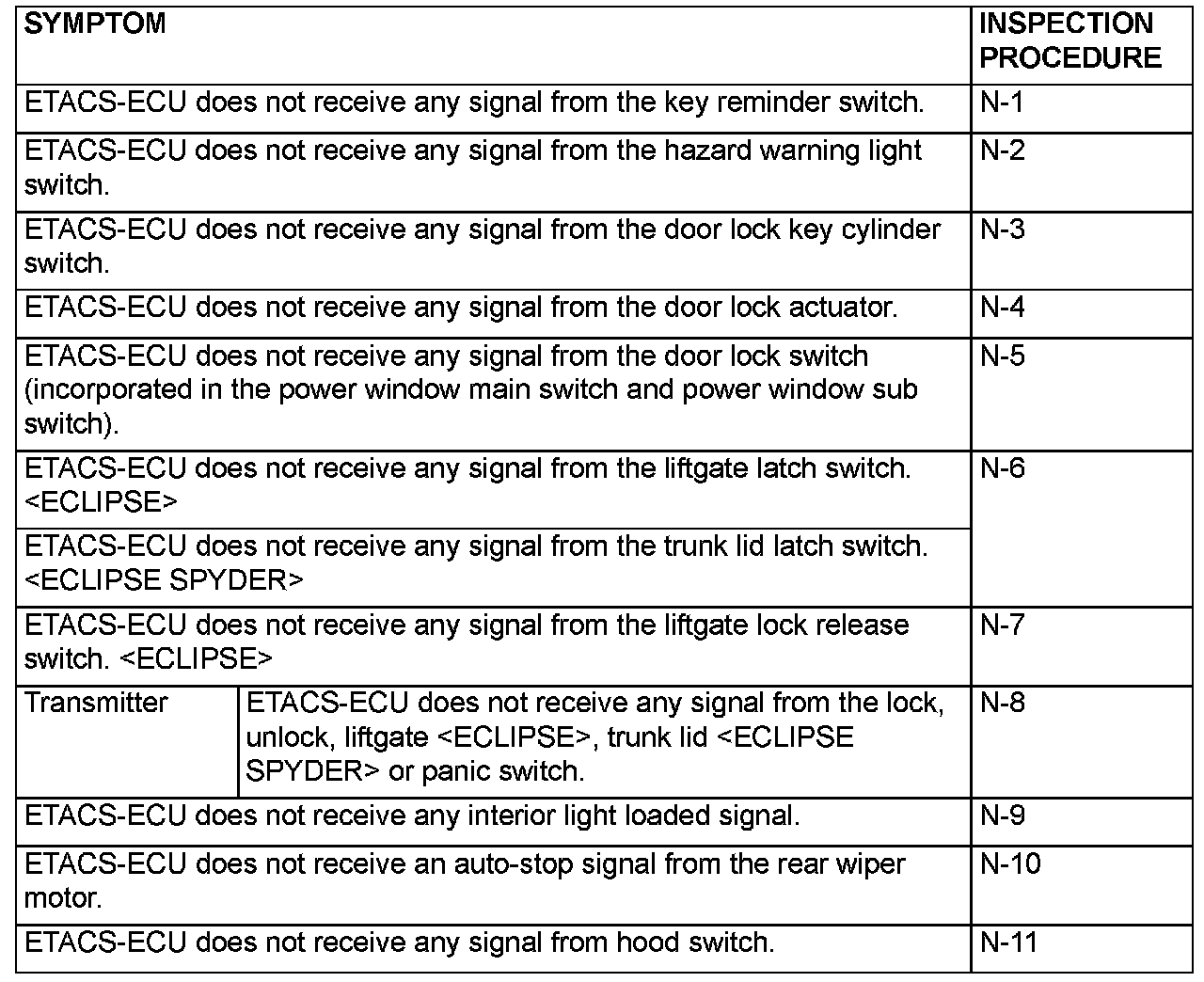

SCAN TOOL OR VOLTMETER
If a problem is found in the Pulse Check, observe the table.
