Pulse Check

PULSE CHECK
1. The input signals (signals other than SWS communication line signals), which are compatible with the SWS monitor by using the scan tool MB991958 (M.U.T.-III Sub Assembly) or voltmeter, can be confirmed by the Pulse Check.

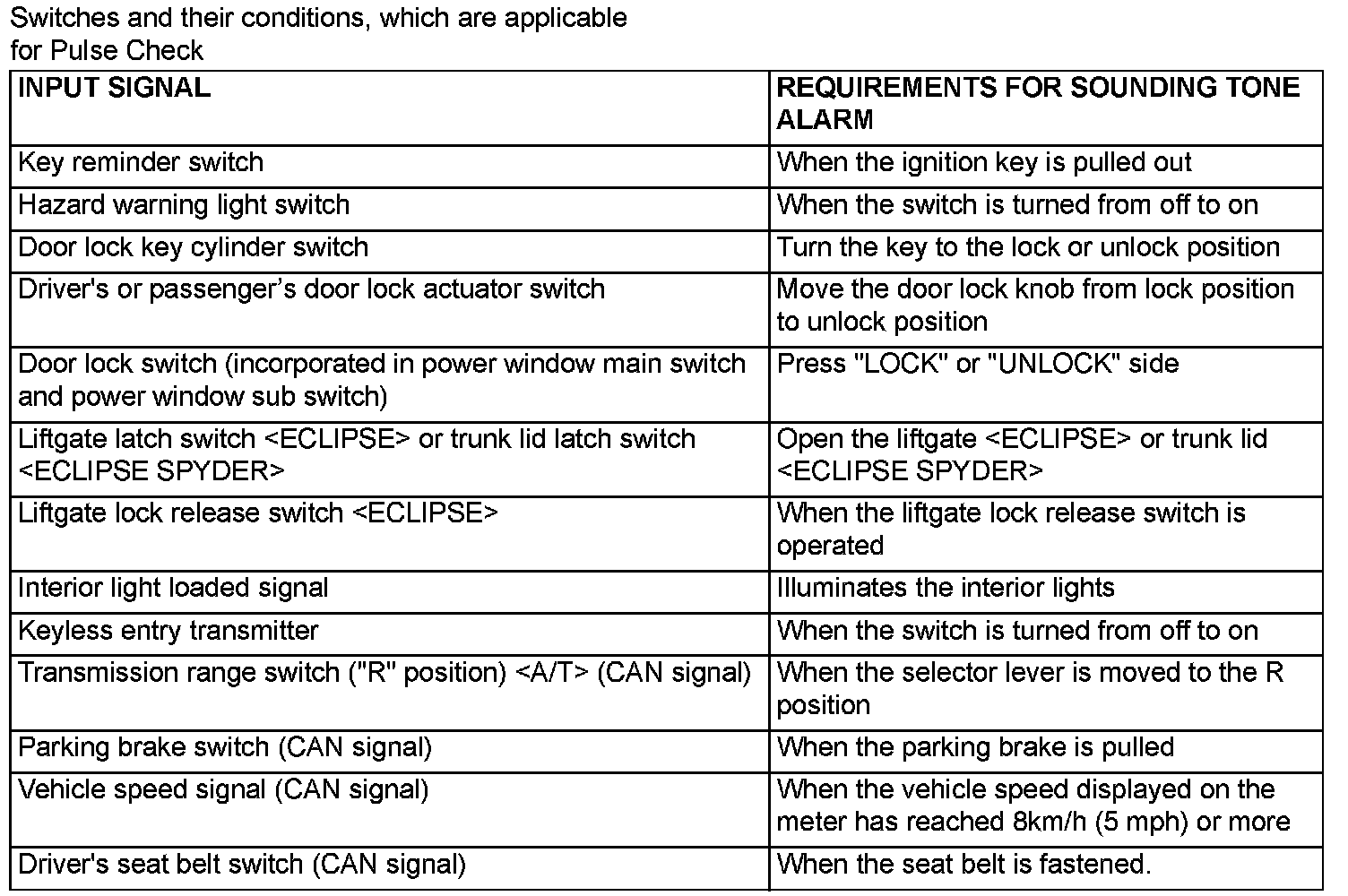

2. Use the scan tool MB991958 (M.U.T.-III Sub Assembly) or voltmeter to check the following input signals.

NOTE: If a problem is found in the Pulse Check, refer to Input Signal Chart. Input Signal Chart
