Removal And Installation

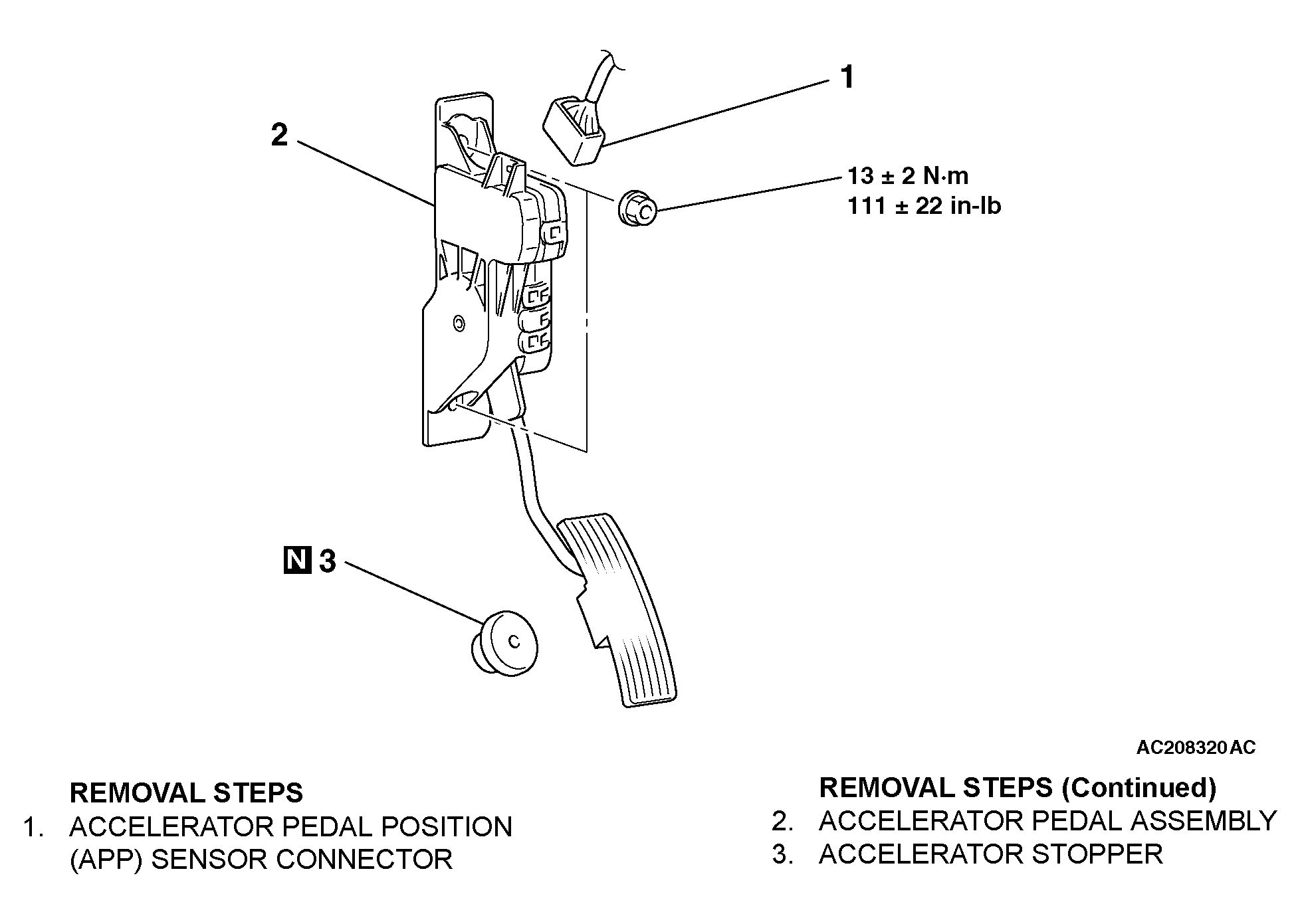

Fig 1: Removing/Installing Of Accelerator Pedal With Torque Specifications
G04310818Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
