Special Tool

SPECIAL TOOL SPECIFICATION

TOOL	TOOL NUMBER AND NAME	SUPERSESSION	APPLICATION
	MB991958 MB991824 MB991827 MB991910 MB991911 MB991914 MB991825 MB991826 M.U.T.-III sub assembly Vehicle communication interface (V.C.I.) M.U.T.-III USB cable M.U.T.-III main harness A (Vehicles with CAN communication system) M.U.T.-III main harness B (Vehicles without CAN communication system) M.U.T.-III main harness C (for Daimler Chrysler models only) M.U.T.-III measurement adapter M.U.T.-III trigger harness	MB991824-KIT NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.	Checking diagnostic trouble codes CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.

TOOL

TOOL NUMBER AND NAME

SUPERSESSION

APPLICATION

MB991958

MB991824
MB991827
MB991910
MB991911
MB991914
MB991825
MB991826

M.U.T.-III sub assembly

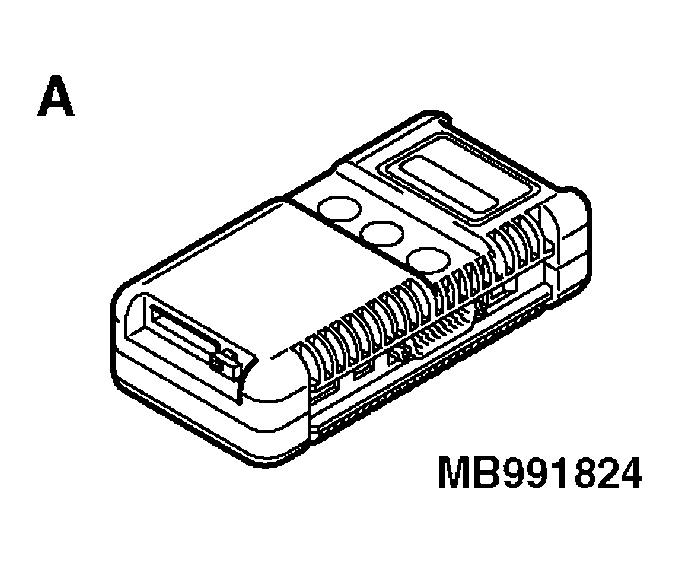

Vehicle communication interface (V.C.I.)

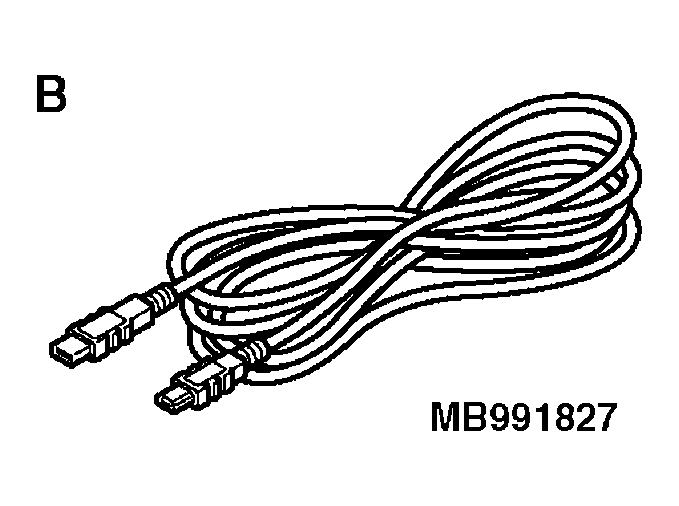

M.U.T.-III USB cable

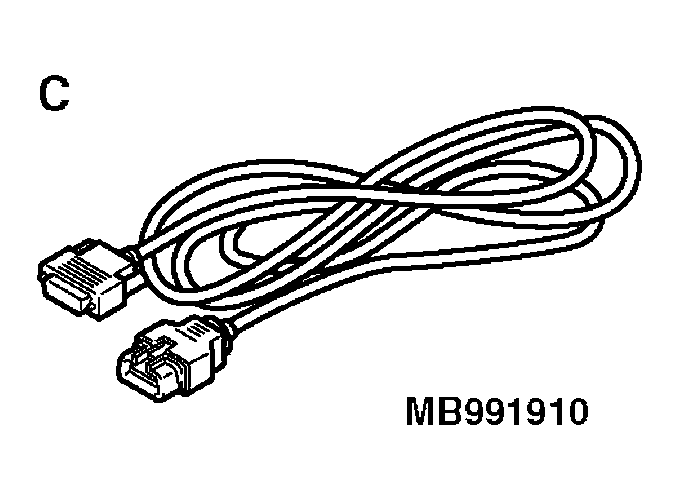

M.U.T.-III main harness A (Vehicles with CAN communication system)

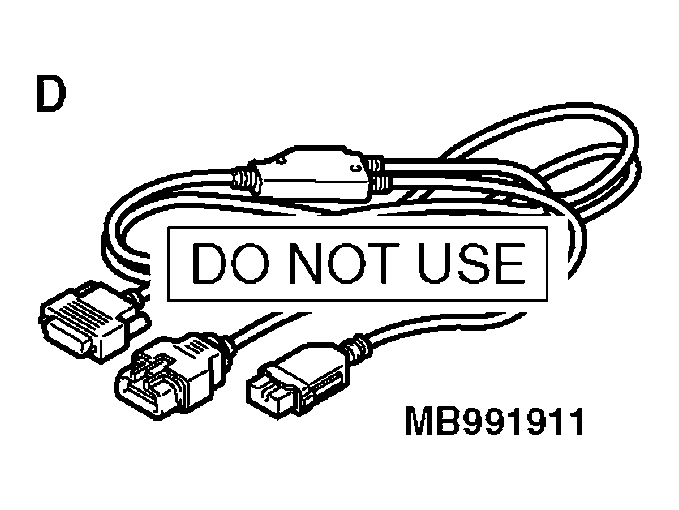

M.U.T.-III main harness B (Vehicles without CAN communication system)
M.U.T.-III main harness C (for Daimler Chrysler models only)

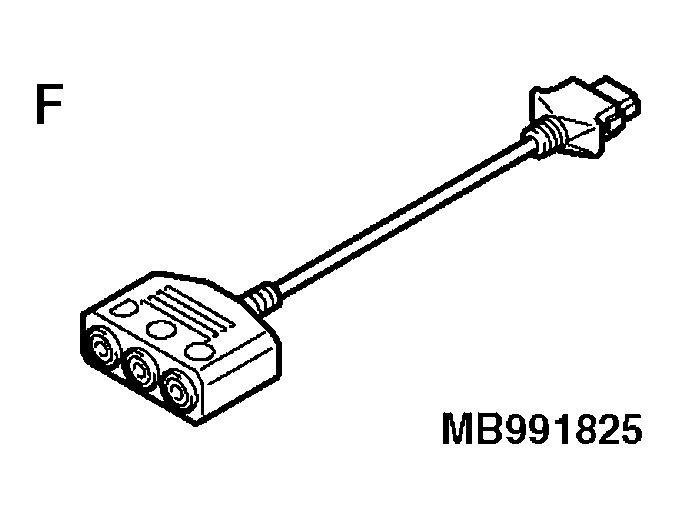

M.U.T.-III measurement adapter

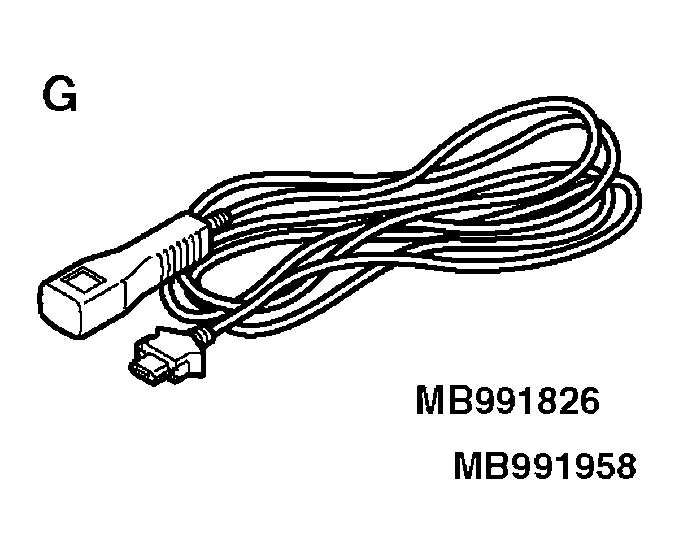

M.U.T.-III trigger harness

MB991824-KIT

NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.

Checking diagnostic trouble codes

CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.
