Remote Controlled Radio Switch Continuity Check

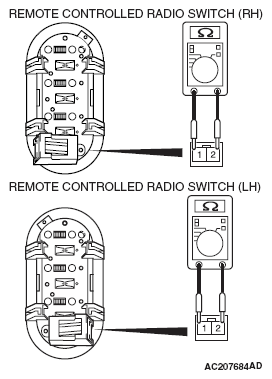

Use an ohmmeter to measure the resistance value between the terminal.
RESISTANCE SPECIFICATION
| SWITCH POSITION | MEASUREMENT VALUE (RH) | MEASUREMENT VALUE (LH) |
|---|---|---|
| No push | Approximately 24.0 kΩ | Open circuit |
| Upper | Approximately 6.8 kΩ | Approximately 1.2 kΩ |
| Center | Less than 2 ohms | Approximately 470 kΩ |
| Lower | Approximately 15.0 kΩ | Approximately 3.3 kΩ |
