Brake Switch (Cruise Control): Testing and Inspection

AUTO-CRUISE CONTROL SYSTEM COMPONENT CHECK

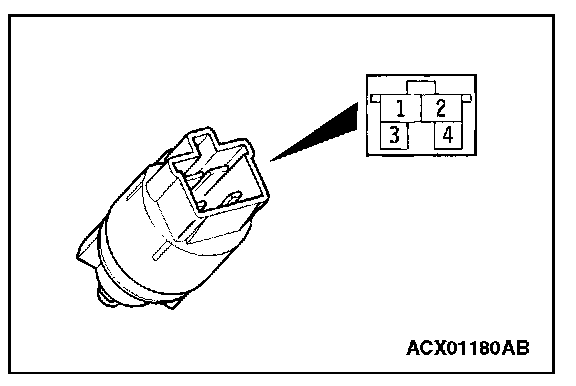

STOPLIGHT SWITCH

1. Disconnect the connector.

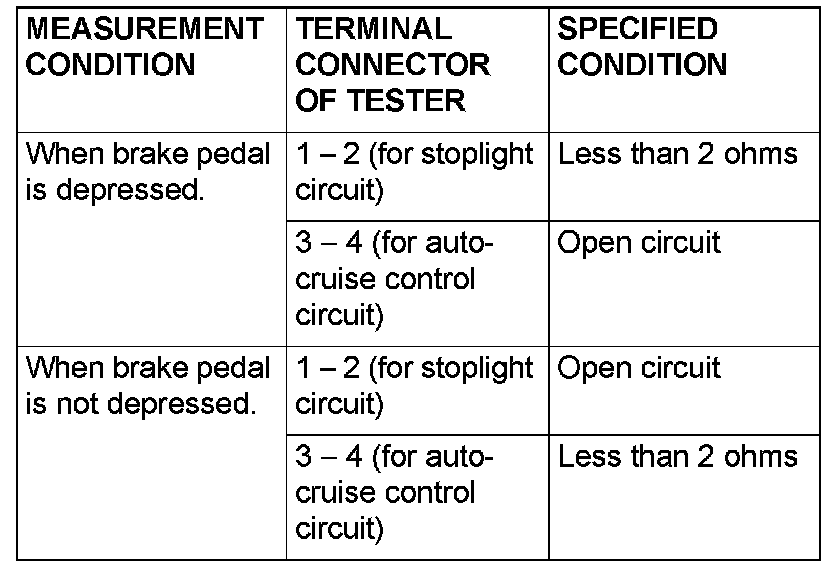

2. Check for continuity between the terminals of the switch.
