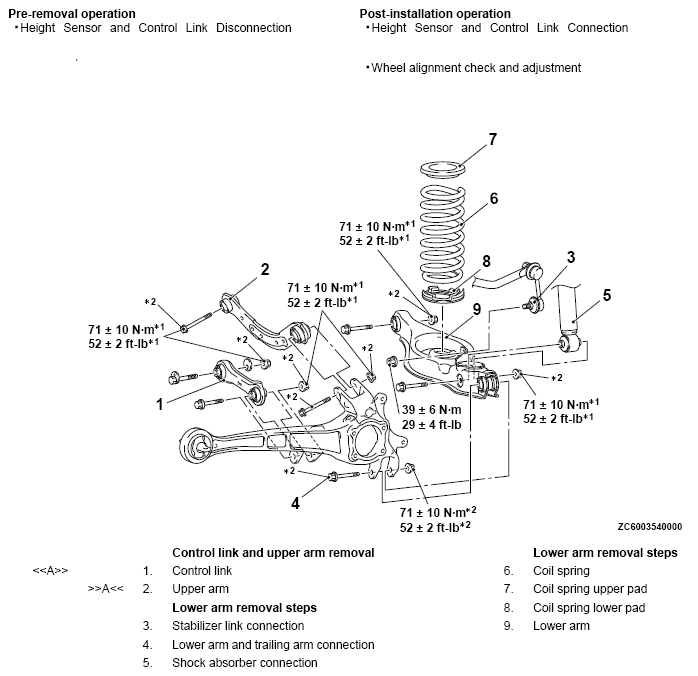

Removal And Installation: Notes
CAUTION:
- The parts indicated by*1 should be temporarily tightened, and then fully tightened with the vehicle standing on the ground and the curb weight condition.
- The parts indicated by*2 are the bolts/nuts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.
Pre-removal operation
- Height Sensor and Control Link Disconnection (Refer to HEADLIGHT AUTOMATIC LEVELING SYSTEM .)
Post-installation operation
- Height Sensor and Control Link Connection (Refer to HEADLIGHT AUTOMATIC LEVELING SYSTEM .)
- Wheel alignment check and adjustment (Refer to REAR WHEEL ALIGNMENT CHECK AND ADJUSTMENT .)
