Removal And Installation: Notes

CAUTION:
  • The parts indicated by*1 should be temporarily tightened, and then fully tightened with the vehicle standing on the ground and the curb weight condition.
  • The parts indicated by*2 are the bolts/nuts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.

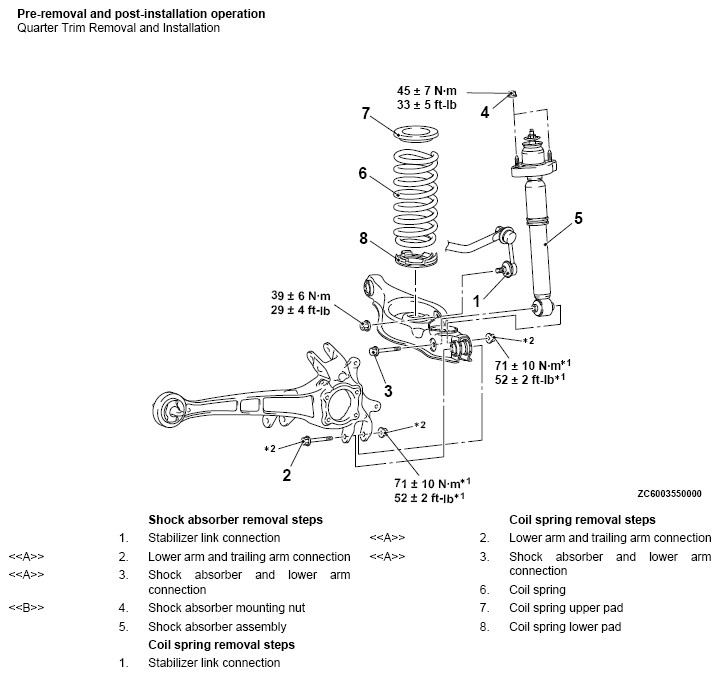

Fig 1: Shock Absorber Assembly Replacement Components With Torque Specifications
G04871821Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
