Diagnostic Test
- CHECK THE STATUS OF THE ERROR MESSAGE NOTE: Ensure the vehicle being tested is a CAN BUS VEHICLE. If not, false error messages may be displayed.NOTE: Ensure the scan tool is updated to the latest software.
- With the scan tool, record the error message.
- Disconnect the scan tool from the DLC
- Cycle the ignition from on to off 3 times.
- Turn the ignition on.
- Reconnect the scan tool.
Q: Does the scan tool display this same error message?
Yes :
- Go To 2
No :
- The conditions that caused this error message to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- (D52) CAN C DIAGNOSTIC (+) CIRCUIT OPEN
- Turn the ignition off.
- Disconnect the Front Control Module C1 harness connector.
- Disconnect the scan tool from the DLC.NOTE: Check the connectors at both the DLC and the FCM.

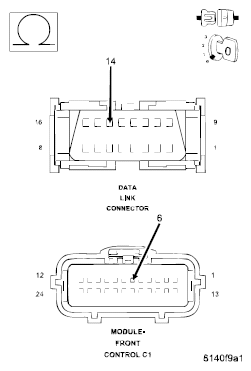

- Measure the resistance of the (D52) CAN C Diagnostic (+) circuit between the FCM connector and the DLC.
Q: Is the resistance below 5.0 ohms?
Yes :
- Go To 3
No :
- Repair the (D52) CAN C Diagnostic (+) circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1 . (Refer to ELECTRONIC CONTROL MODULES/MODULE - FRONT CONTROL/DIAGNOSIS AND TESTING).
- (D51) CAN C DIAGNOSTIC (-) CIRCUIT OPEN

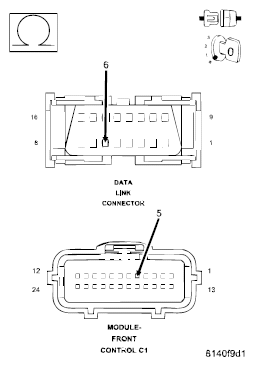

- Measure the resistance of the (D51) CAN C Diagnostic (-) circuit between the FCM connector and the DLC.
Q: Is the resistance below 5.0 ohms?
Yes :
- Inspect the wiring and connectors for damage or shorted circuits. If OK, replace the Front Control Module in accordance with the service information.
- Perform BODY VERIFICATION TEST - VER 1 . (Refer to ELECTRONIC CONTROL MODULES/MODULE - FRONT CONTROL/DIAGNOSIS AND TESTING).
No :
- Repair the (D51) CAN C Diagnostic (-) circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1 . (Refer to ELECTRONIC CONTROL MODULES/MODULE - FRONT CONTROL/DIAGNOSIS AND TESTING).
