*No Response From Pcm (Powertrain Control Module): Notes

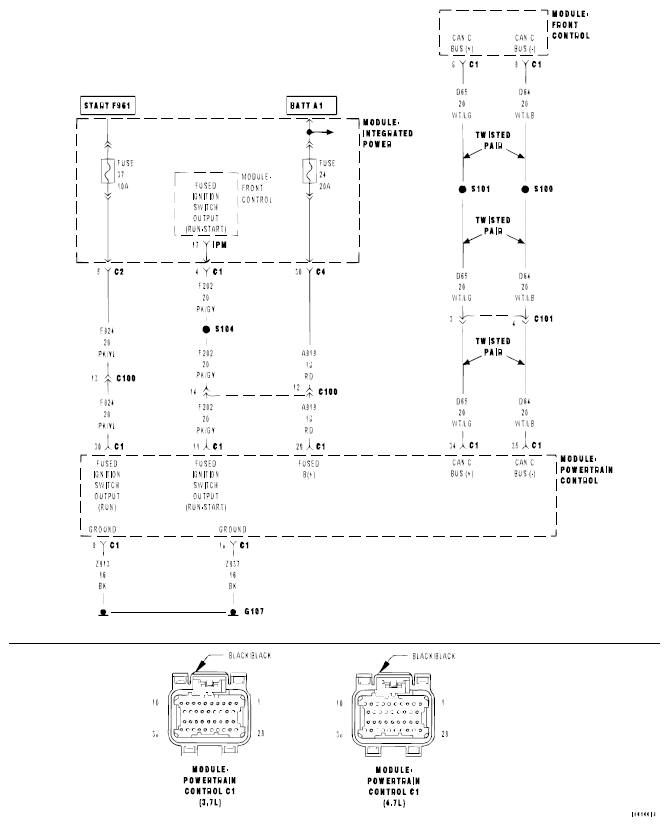

Fig 1: Powertrain Control Module Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram , refer to appropriate SYSTEM WIRING DIAGRAMS article.

Possible Causes
(A919) FUSED B (+) CIRCUIT OPEN OR SHORTED
(Z937) (Z913) GROUND CIRCUIT OPEN
(F202) (F924) FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN OR SHORTED
(D65) CAN C BUS (+) CIRCUIT OPEN
(D64) CAN C BUS (-) CIRCUIT OPEN
POWERTRAIN CONTROL MODULE
