DTC U0001-Can C Bus Circuit: Notes

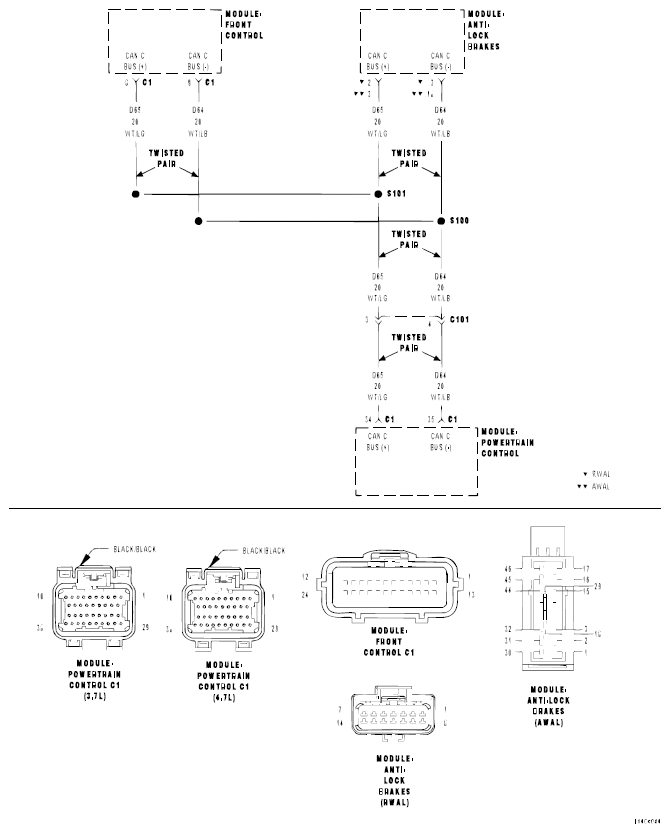

For a complete wiring diagram , refer to appropriate SYSTEM WIRING DIAGRAMS article.
- When Monitored:
With the ignition on.
- Set Condition:
The FCM detects a short in either CAN C Bus circuit.
| Possible Causes |
|---|
| (D65) CAN C BUS (+) CIRCUIT SHORTED TO GROUND |
| (D64) CAN C BUS (-) CIRCUIT SHORTED TO GROUND |
| (D65) CAN C BUS (+) CIRCUIT SHORTED TO VOLTAGE |
| (D64) CAN C BUS (-) CIRCUIT SHORTED TO VOLTAGE |
| (D65) CAN C BUS (+) CIRCUIT SHORTED TO (D64) CAN C BUS (-) CIRCUIT |
| ANTILOCK BRAKE MODULE |
| POWERTRAIN CONTROL MODULE |
| FRONT CONTROL MODULE |
