DTC U0121-Lost Communication With Anti-Lock Brake System (Abs) Control Module: Notes

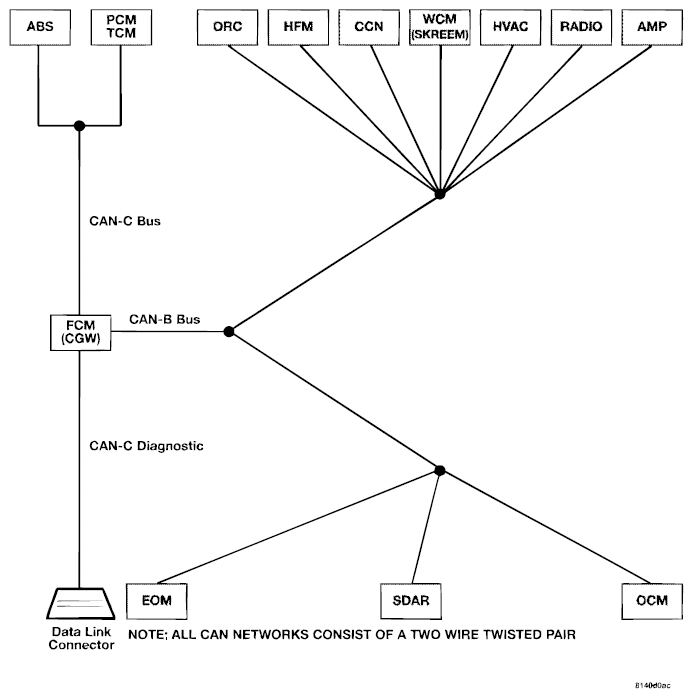

Fig 1: Communication Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram  , refer to appropriate SYSTEM WIRING DIAGRAMS article.

• When Monitored:
  • With the ignition on
  • Battery voltage between 10 and 16 volts
  • IOD fuse installed
  • FCM is configured correctly
• Set Condition:

  Bus messages not received from the Antilock Brake Module for approximately 2 to 5 seconds.
