Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Circuit Breaker At junction block. See Figure.

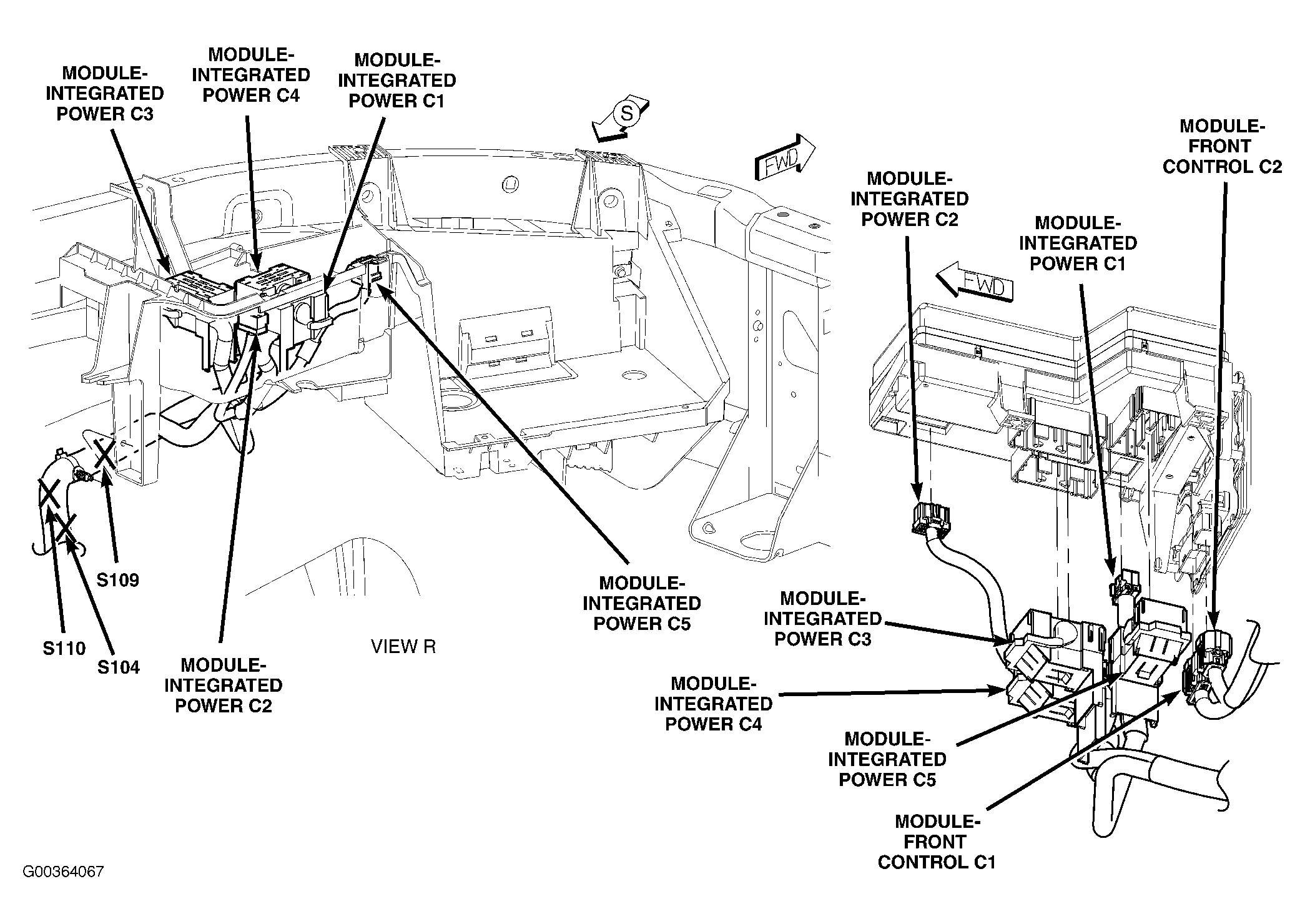

Integrated Power Module At left side of engine compartment. See Figure.
