Removal And Installation

GENERATOR ASSEMBLY COMPONENTS REMOVAL STEPS

Pre-removal operation

Engine Room Under Cover Front Removal (Refer to UNDER COVER ).
Radiator Condenser Tank Removal (Refer to RADIATOR ).

Post-installation operation

Drive Belt Tension Check (Refer to DRIVE BELT TENSION CHECK ).
Radiator Condenser Tank Installation (Refer to RADIATOR ).
Engine Room Under Cover Front Installation (Refer to UNDER COVER ).

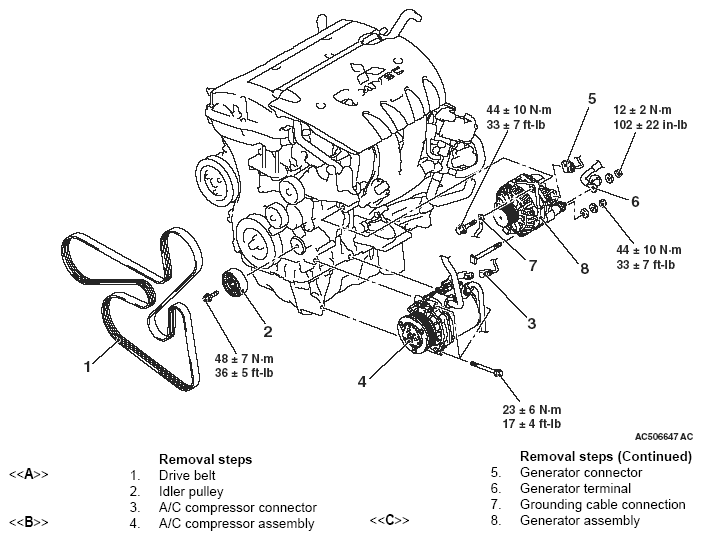

Fig 1: Generator Assembly Replacement Components With Torque Specifications

G05375401

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
