Data List Reference Table
[DATA LIST REFERENCE TABLE]The table below shows the service data and their normal condition, which are displayed during the "Data List."

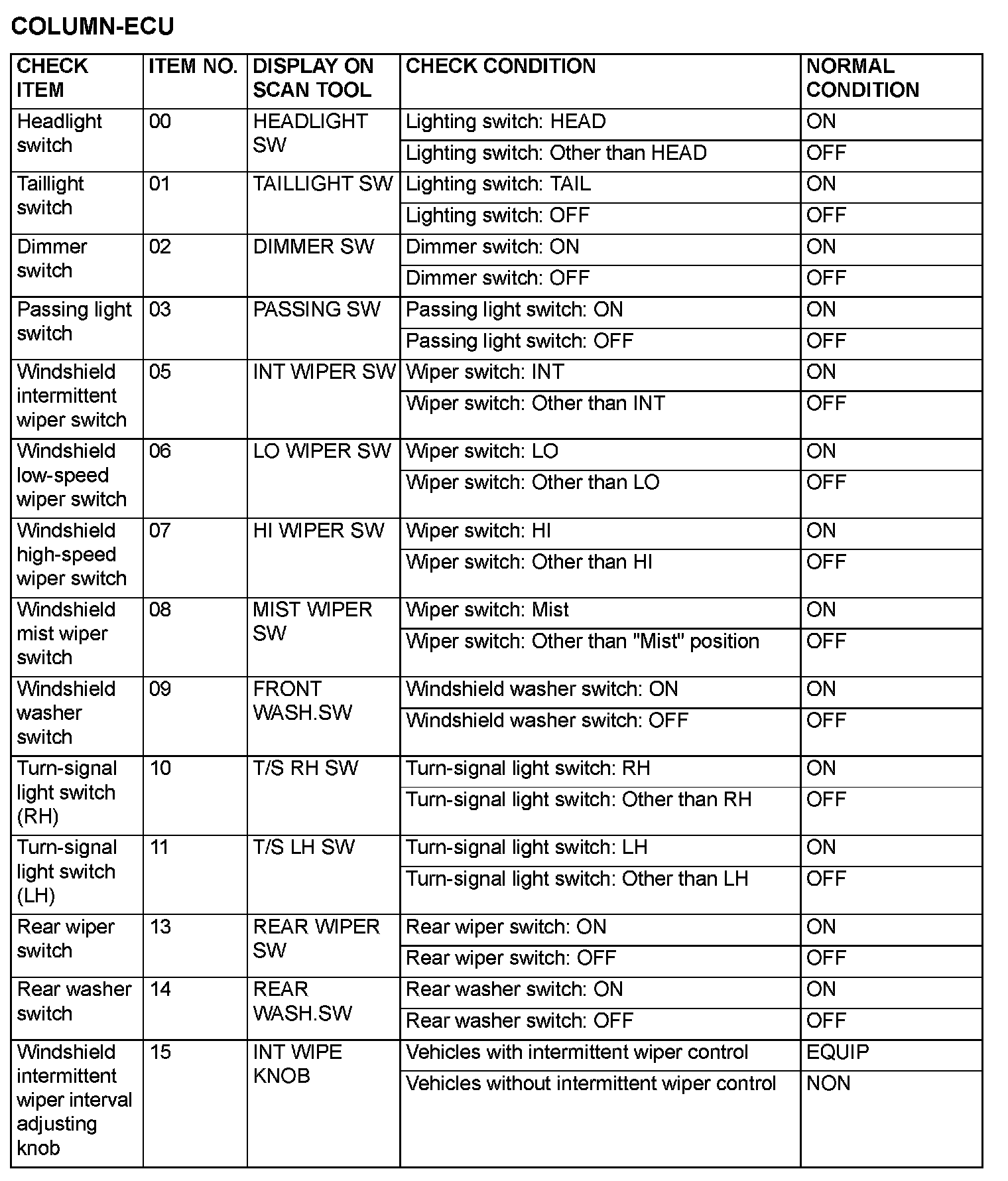

Data List Reference Table - COLUMN-ECU:

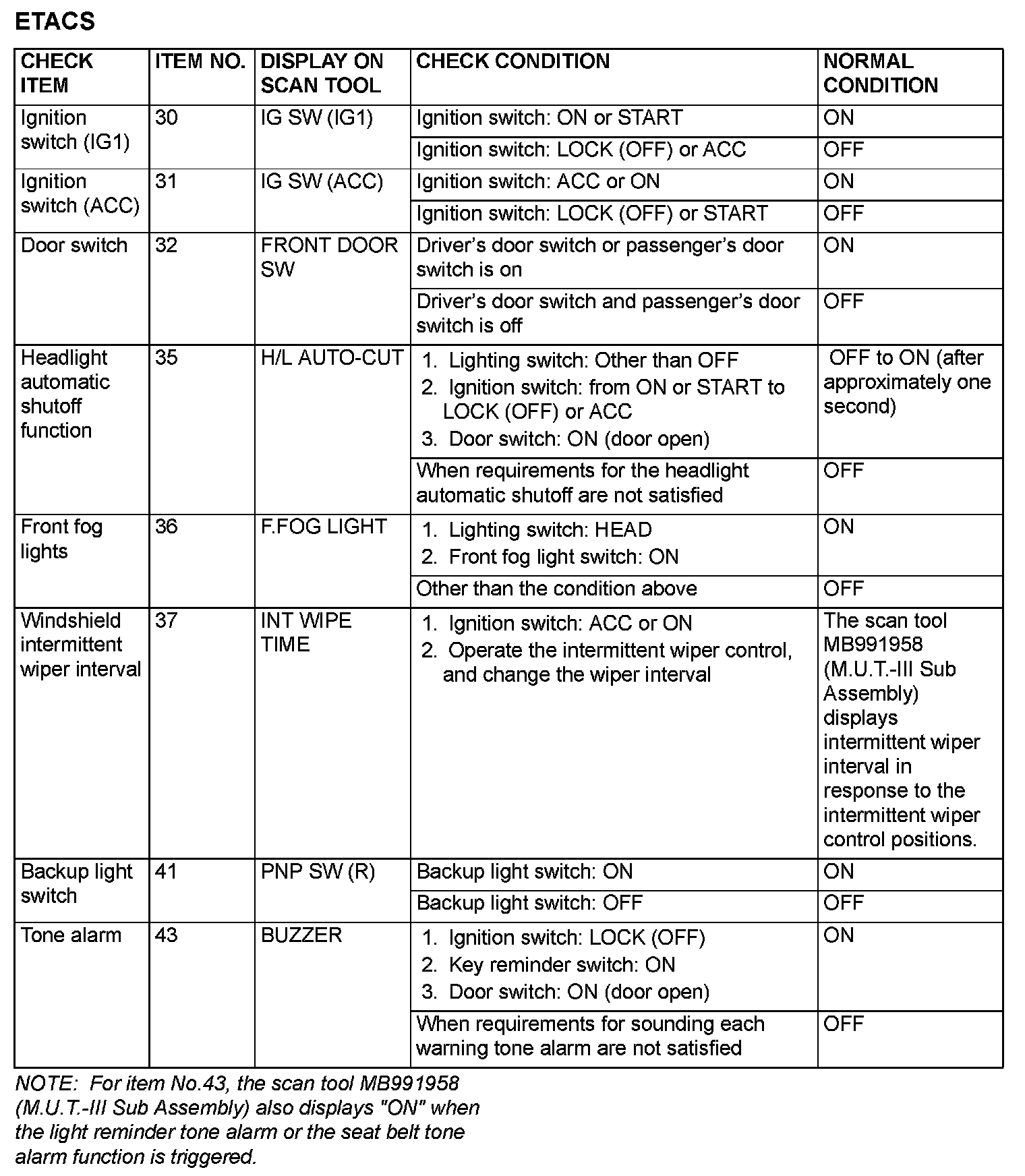

Data List Reference Table - ETACS-ECU:

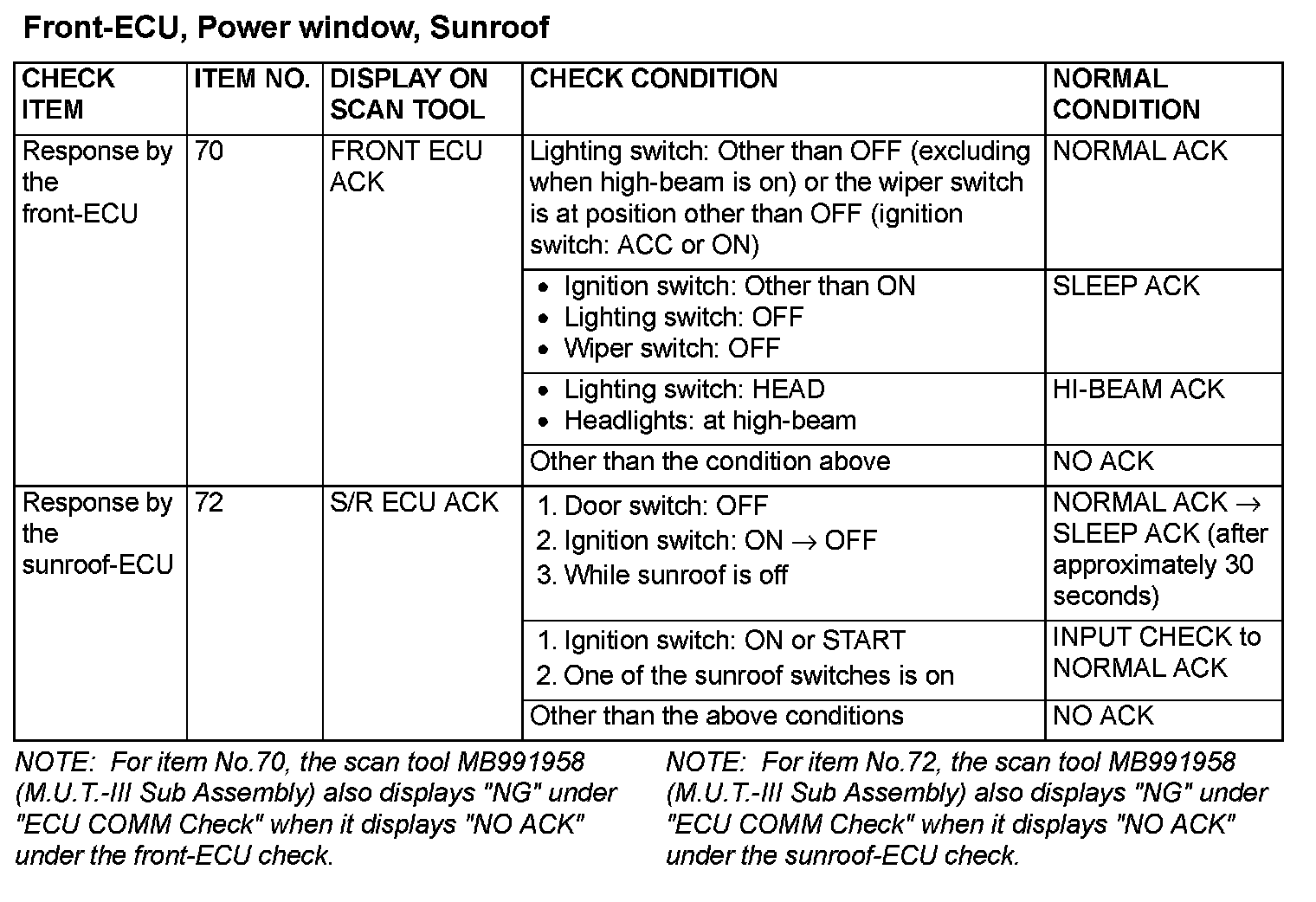

Data List Reference Table - Front-ECU, Power Window, Sunroof-ECU:
