Control Unit

CONTROL UNIT REFERENCE CHART

NAME	SYMBOL	NAME	SYMBOL
A/C-ECU	K	Multi center display unit	F
ABS-ECU or ABS/TCL-ECU	A	Occupant classification-ECU	M
Column switch (incorporating column-ECU)	D	Powertrain control module	B
Combination meter (incorporating CPU)	E	Power window main switch (incorporating CPU)	N
ETACS-ECU	H	SRS-ECU	I
Front-ECU	C	Sunroof assembly (incorporating sunroof-ECU)	L
Hands-free module < Hands-free cellular phone system >	G	TPMS receiver	J

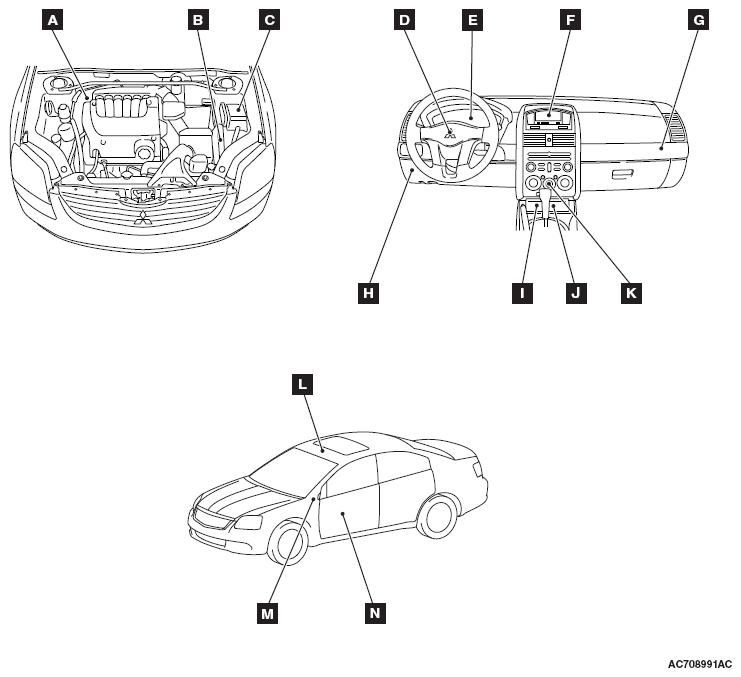

Fig 1: Control Unit Locations (1 Of 3)

G07561571

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

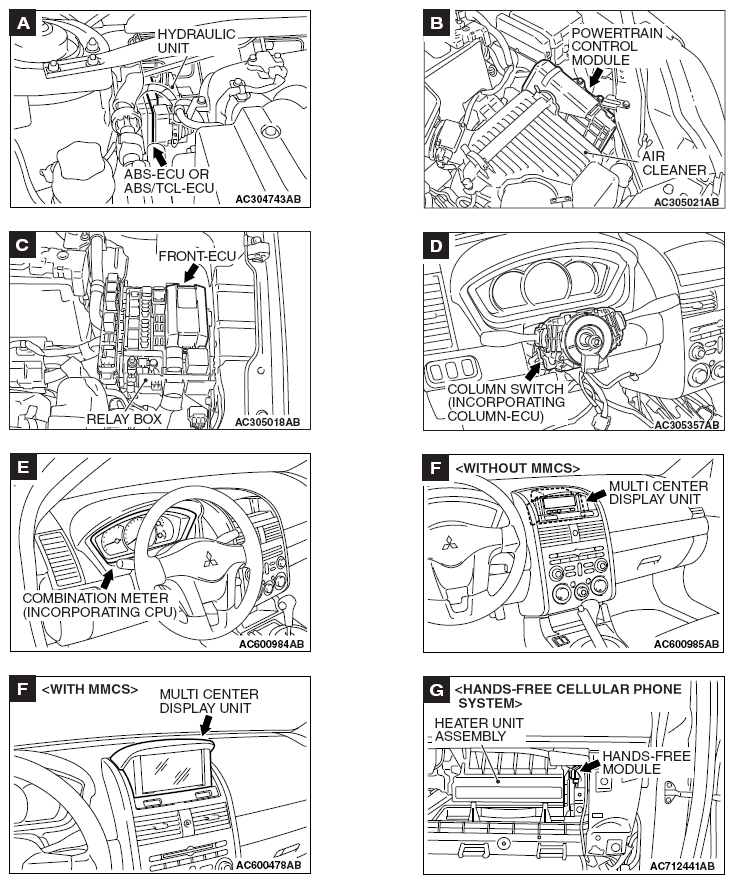

Fig 2: Control Unit Locations (2 Of 3)

G07561572

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

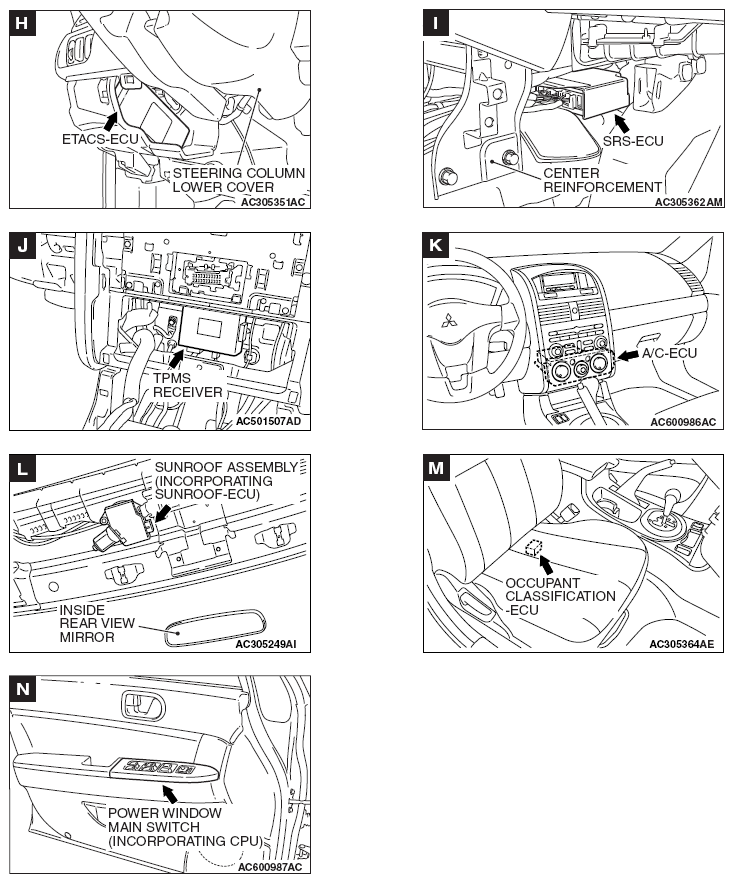

Fig 3: Control Unit Locations (3 Of 3)

G07561573

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
