Special Tool

SPECIAL TOOL REFERENCE

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION

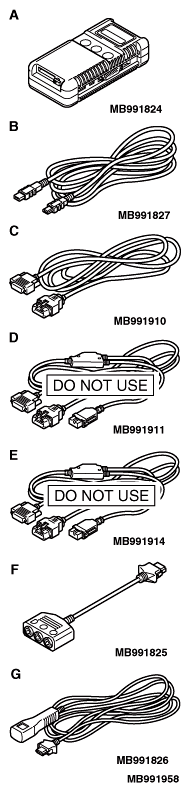

G06246470Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991958
  1. A: MB991824
  2. B: MB991827
  3. C: MB991910
  4. D: MB991911
  5. E: MB991914
  6. F: MB991825
  7. G: MB991826

M.U.T.-III sub assembly
  1. A: Vehicle communication interface (V.C.I.)
  2. B: M.U.T.-III USB cable
  3. C: M.U.T.-III main harness A (Vehicles with CAN communication system)
  4. D: M.U.T.-III main harness B (Vehicles without CAN communication system)
  5. E: M.U.T.-III main harness C (for DaimlerChrysler models only)
  6. F: M.U.T.-III adapter harness
  7. G: M.U.T.-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 M.U.T.-III trigger harness is not necessary when pushing V.C.I. ENTER key.
CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.
Checking diagnostic trouble codes
