Removal And Installation

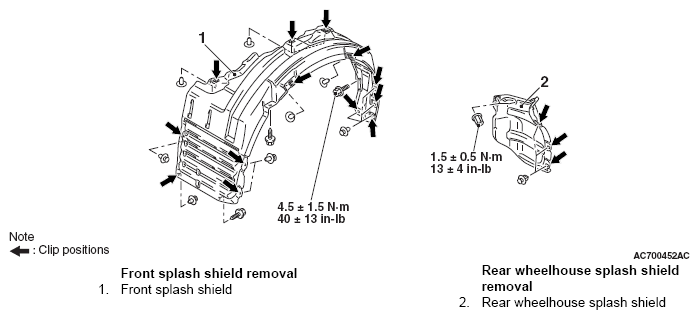

Fig 1: Splash Shield Replacement Components With Torque Specifications
G05905102Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
