INSPECTION PROCEDURE 1: Communication between Scan Tool and the TCL/ASC-ECU is not possible: Notes

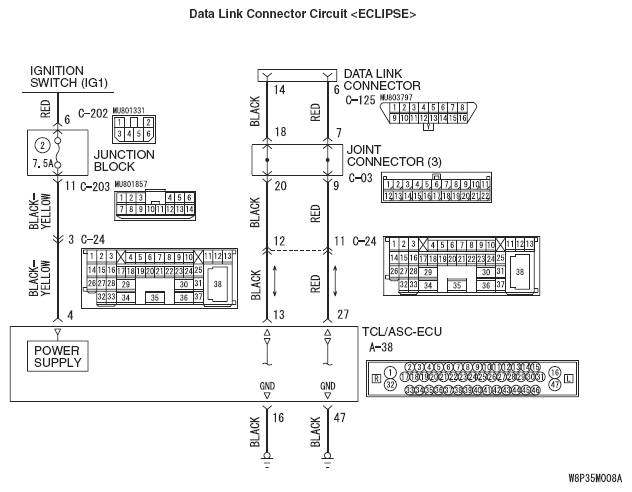

Fig 1: Data Link Connector Circuit Diagram (Eclipse)
G05435561Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

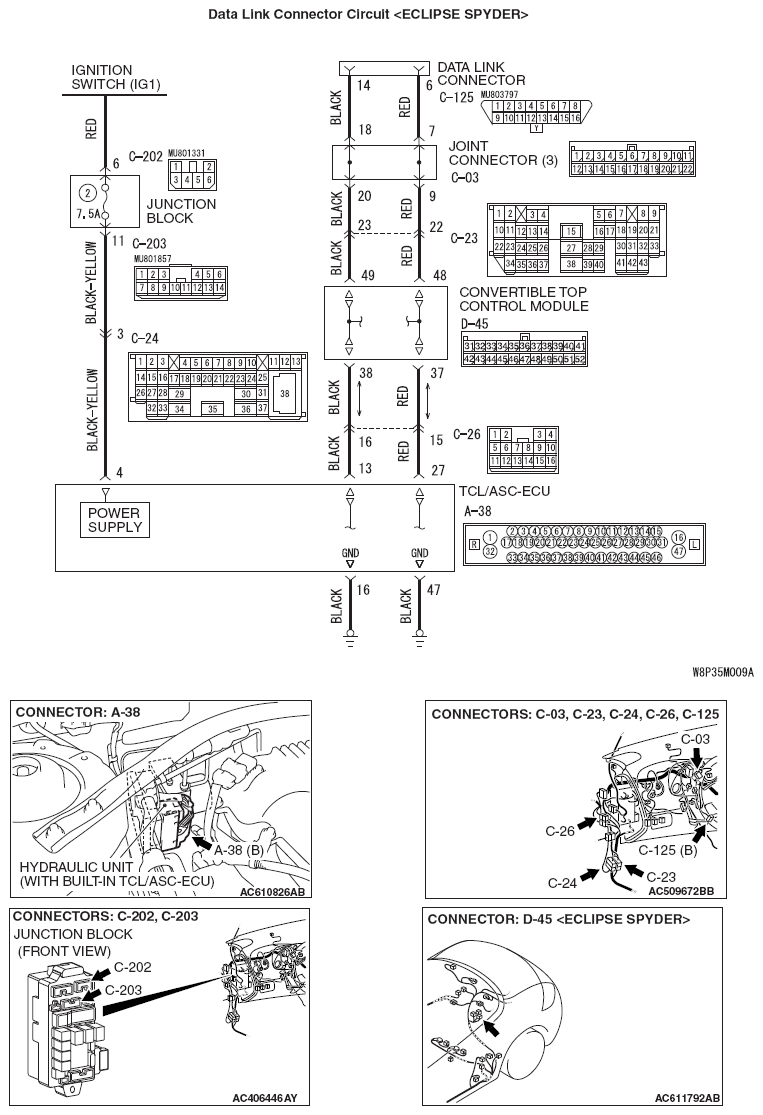

Fig 2: Data Link Connector Circuit Diagram (Eclipse Spyder)
G06689864Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
