INSPECTION PROCEDURE 2: Communication between Scan Tool and the steering wheel sensor is not possible: Notes

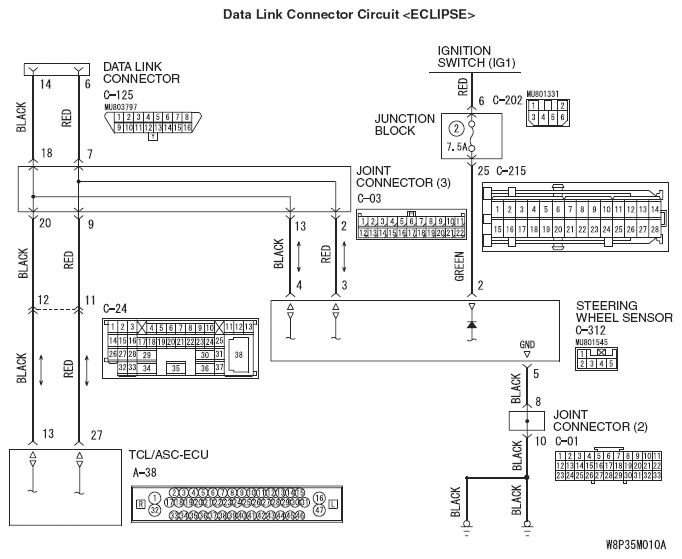

Fig 1: Data Link Connector Circuit Diagram (Eclipse)
G05435564Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

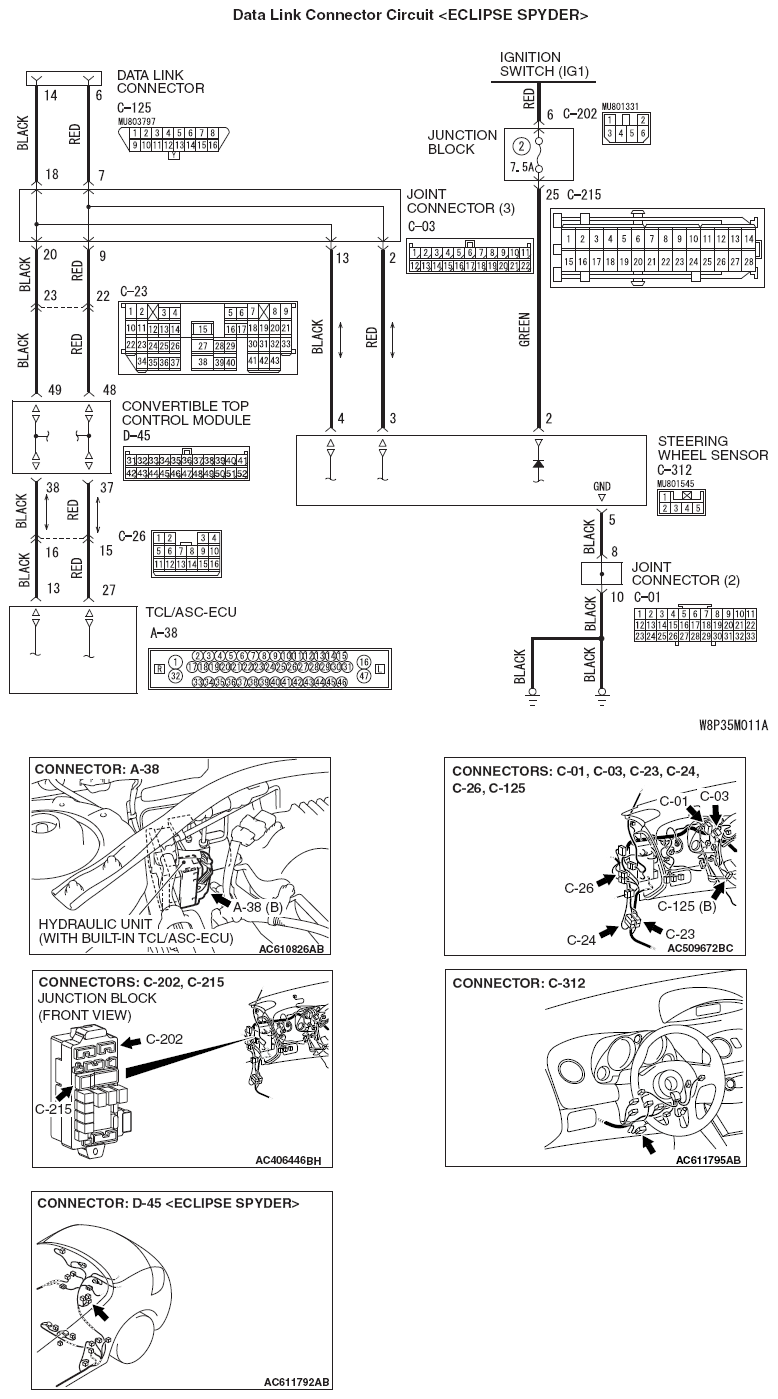

Fig 2: Data Link Connector Circuit Diagram (Eclipse Spyder)
G06689867Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
