"Key Registration (Barcode No.)" METHOD

WARNING: This page is about a different variant/trim than selected.

When "Key Registration (Barcode No.)" screen is displayed, enter the password for the key registration and press the OK button.
NOTE: If the wrong password is entered consecutively 5 times, the password entry for the key registration will be disabled for 16 minutes.

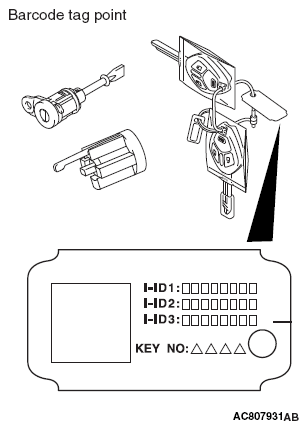

Fig 1: Identifying Barcode Tag Point
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Screen Display - OK Button
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Follow the message on the screen to enter the bar code No., and then press the OK button.
When "Do you want to start?" is displayed, press the OK button to start the registration, or press the Cancel button to cancel the registration.
"Completed" is displayed. Press the OK button to finish the registration.
NOTE: When the key cannot be registered using scan tool MB991958, refer to INSPECTION PROCEDURE 2 "THE IGNITION KEY CANNOT BE REGISTERED USING SCAN TOOL" .

Fig 3: Screen Display - OK Button
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Screen Display - Barcode
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
