Removal And Installation

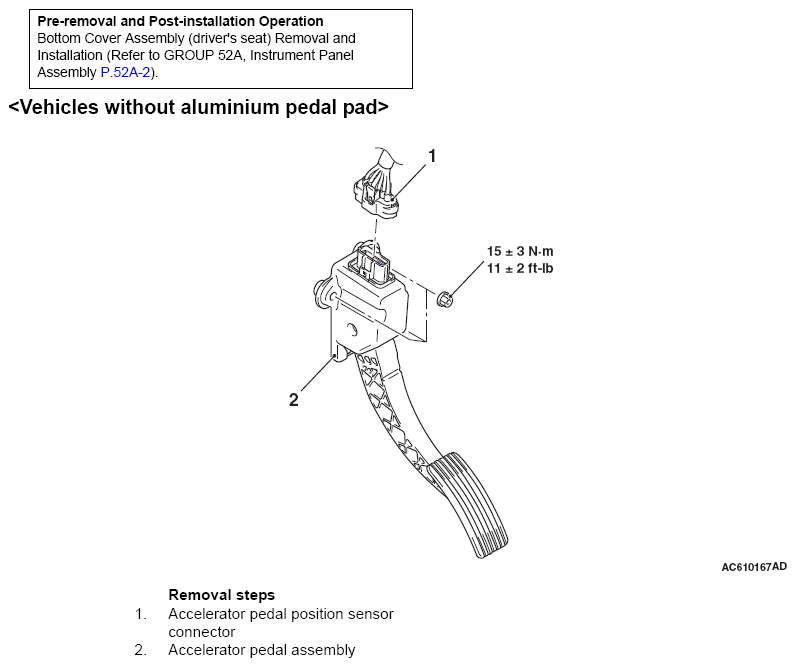

Fig 1: Accelerator Pedal Replacement Components (Vehicle Without Aluminum Pedal Pad) With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

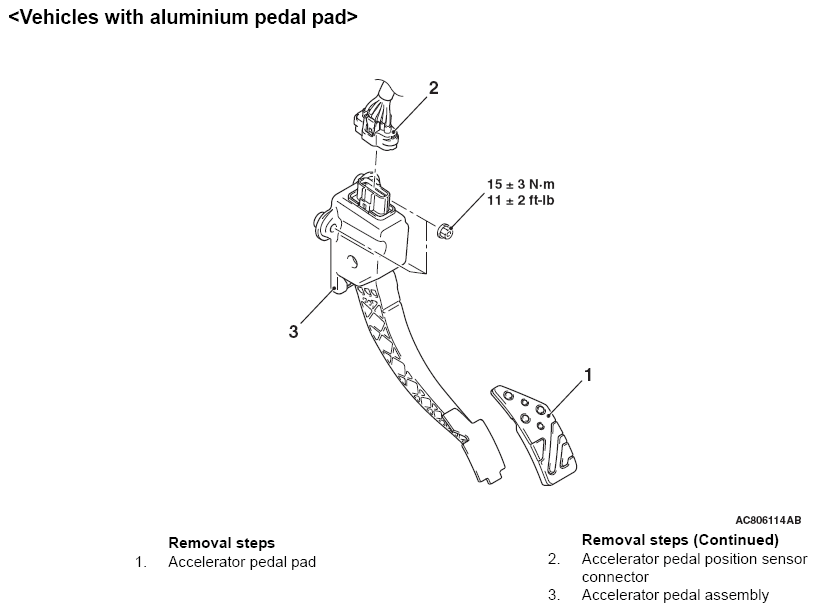

Fig 2: Accelerator Pedal Replacement Components (Vehicle With Aluminum Pedal Pad) With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
