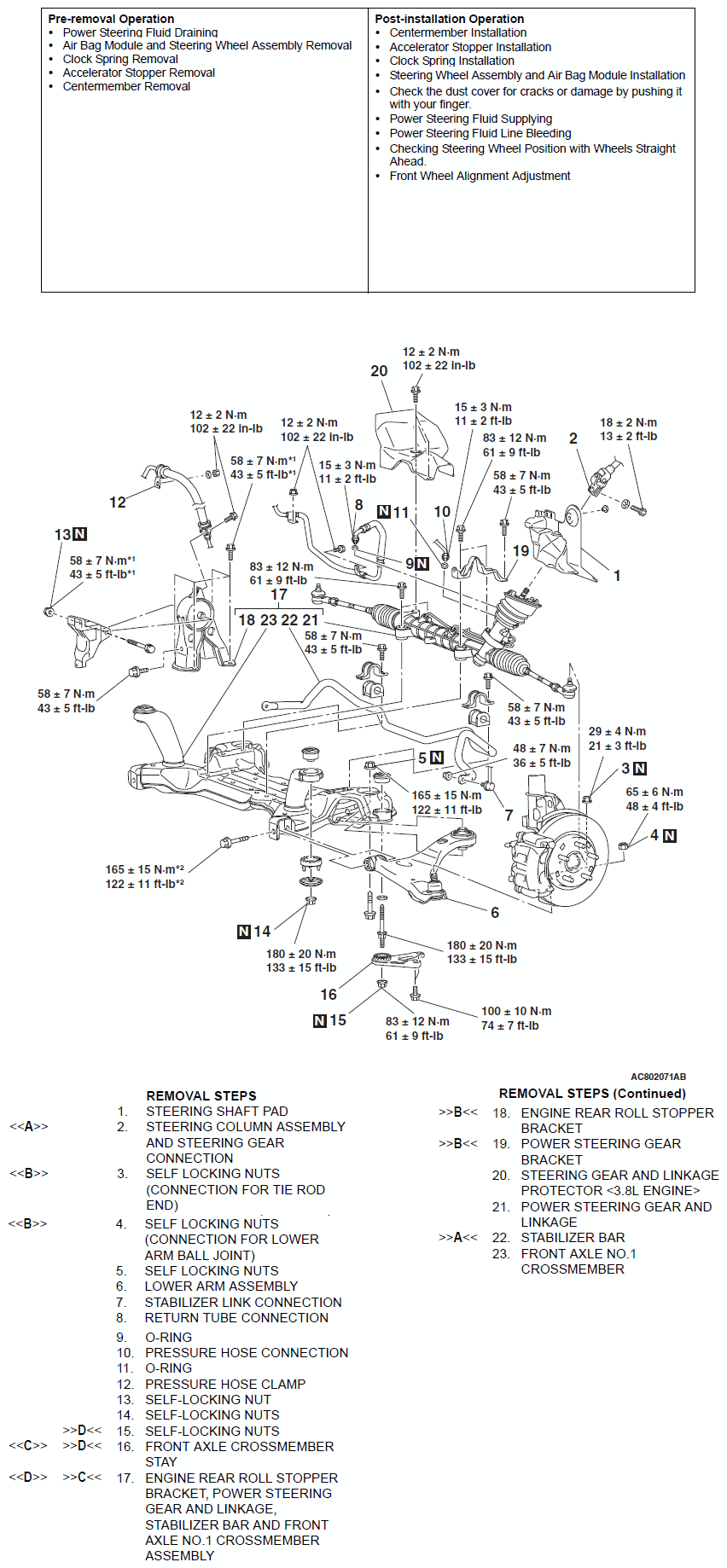

Removal And Installation: Notes
CAUTION:
- Before removing the steering wheel and air bag module assembly, always refer to SERVICE PRECAUTIONS , AIR BAG MODULE AND CLOCK SPRING . Also, set the front wheels so that they are facing straight forward, and remove the ignition key. If you fail to do this, the SRS clock spring will be damaged, causing the SRS air bag to be inoperative and serious injury.
- *1 : Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.
- *2 : Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in the unladen condition.
Required Special Tool:
- MB991897 or MB992011: Ball Joint Remover
