Sectional View <5A/T>

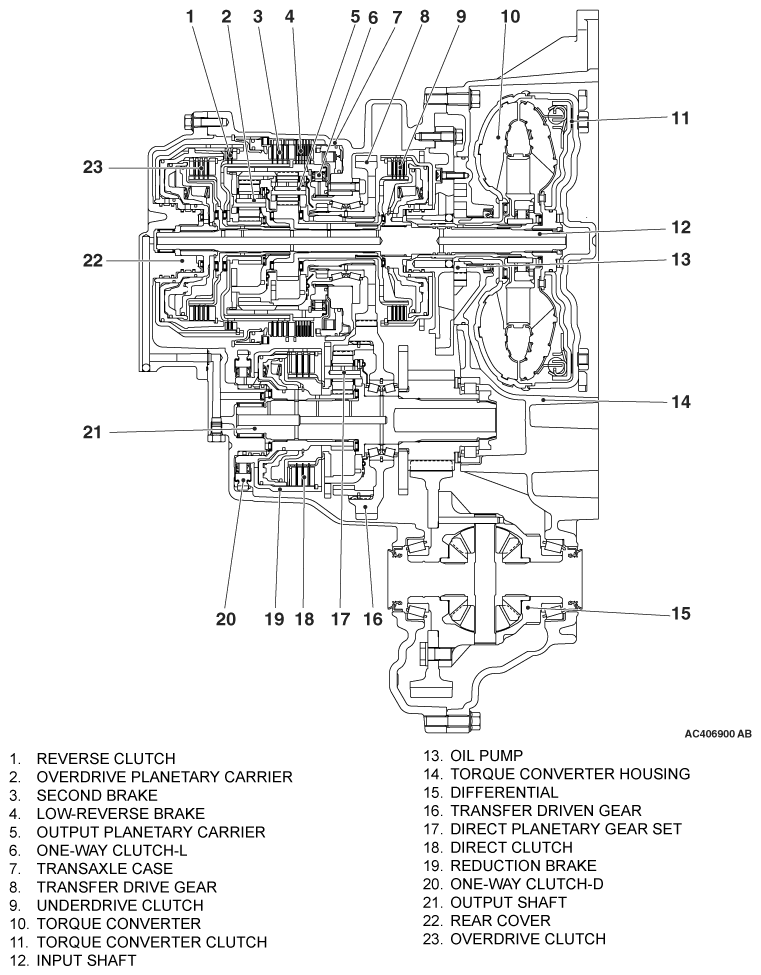

Fig 1: Sectional View Of Automatic Transaxle - 5A/T
G06684935Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
