System Construction Diagram: Notes

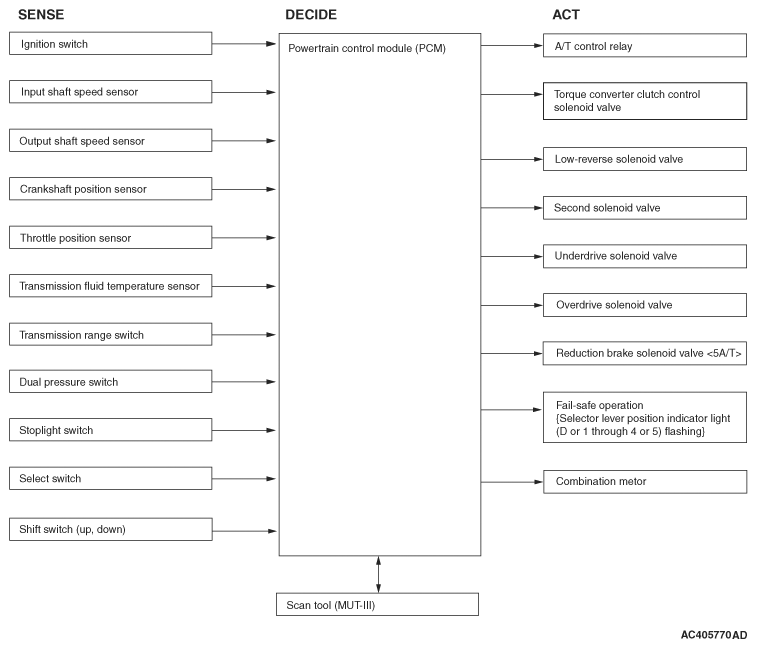

Fig 1: System Construction Diagram

G06684941

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
