Removal And Installation

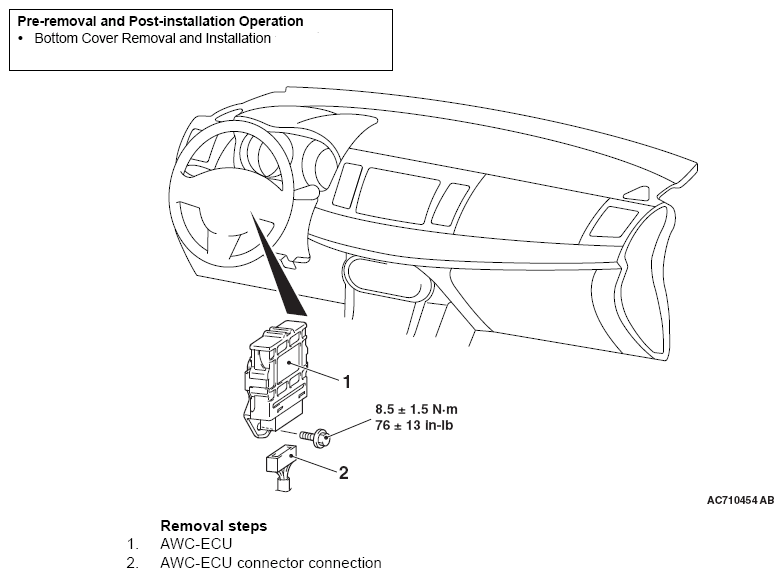

Fig 1: Removal/Installation Of AWC-ECU And AWC-ECU Connector Connection With Torque Specifications
G06676912Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
