Body Control Module: Locations

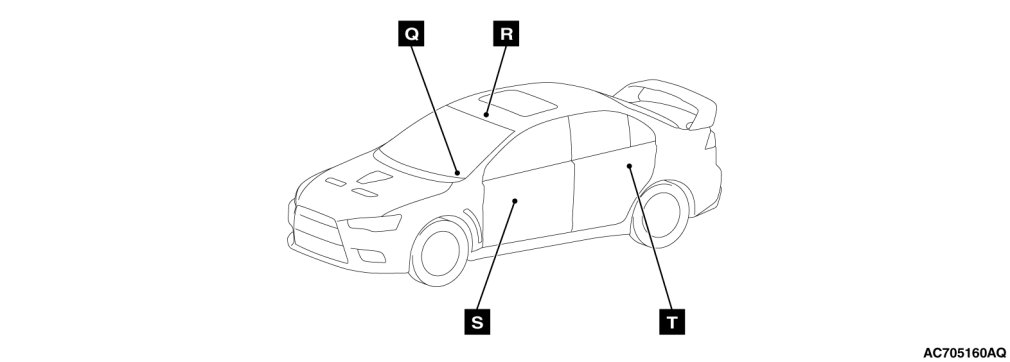

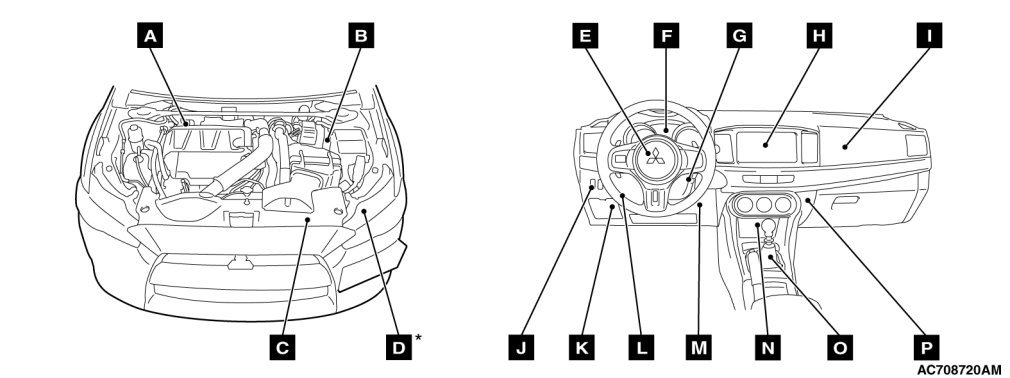

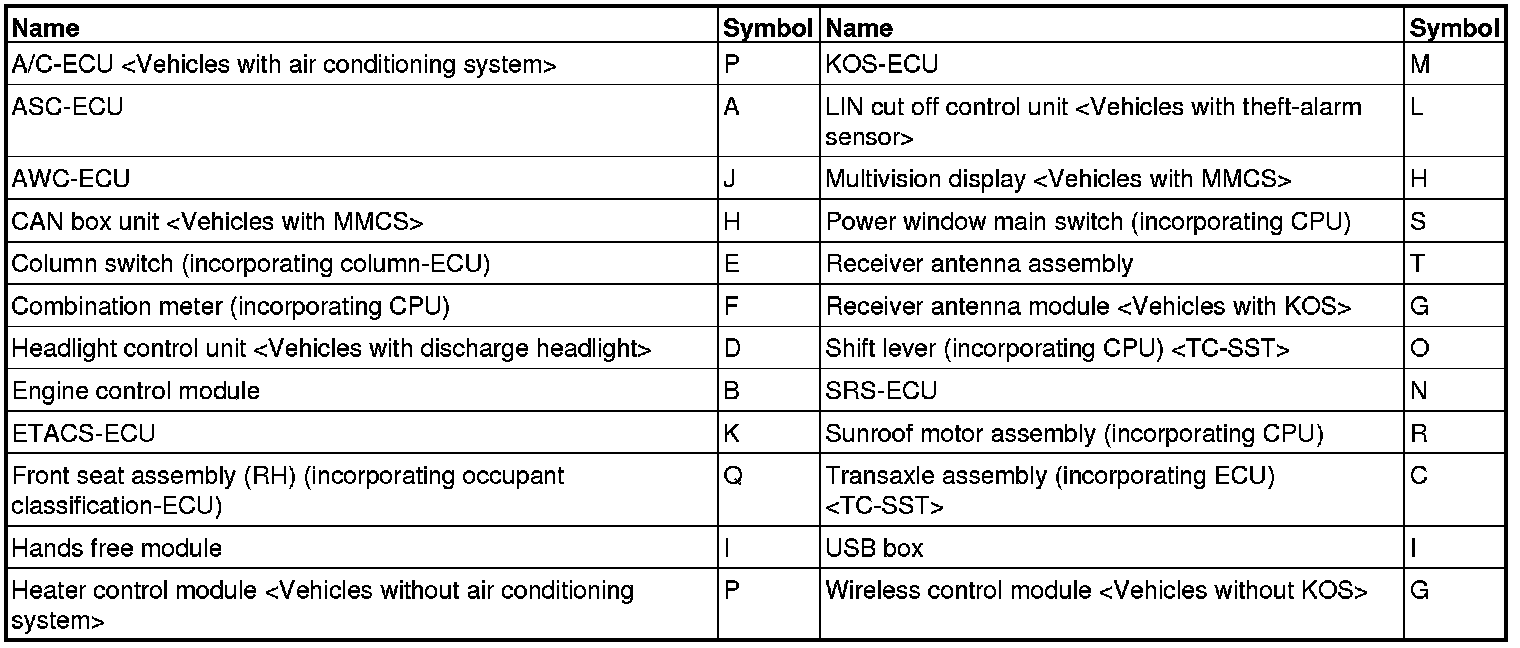

CONTROL UNIT













NOTE:
The * symbols indicate equipped at both side.
