Nominal Resistance Of The Fuel Level Sensor

  1. Remove the fuel pump module (Refer to FUEL TANK < 2.0L ENGINE Non-turbo, 2.4L ENGINE > or FUEL TANK < 2.0L ENGINE Turbo > ).
  2. When float of the fuel level sensor is in stopper positions F and E, ensure that resistance between the fuel level sensor terminal and ground terminal is within the standard value.

    < FWD > Standard value:

    FUEL LEVEL SENSOR RESISTANCE TABLE (FWD)

    Float position Gauge resistance value (ohms)
    Stopper position "F" 13.0 ± 1.0
    Stopper position "E" 120.0 ± 1.0

    < AWD > Standard value:

    FUEL LEVEL SENSOR RESISTANCE TABLE (AWD)

    Float position Gauge resistance value (ohms)
    Main Sub
    Stopper position "F" 6.5 ± 1.0 6.5 ± 1.0
    Stopper position "E" 41.9 ± 1.0 78.1 ± 1.0
  3. When the float is moved slowly between stopper positions "F" and "E", ensure that the resistance is smoothly changing.

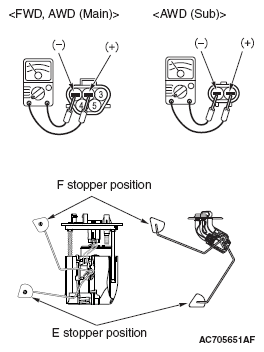

    Fig 1: Checking Fuel Level Sensor
    G05906327Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
