Removal And Installation

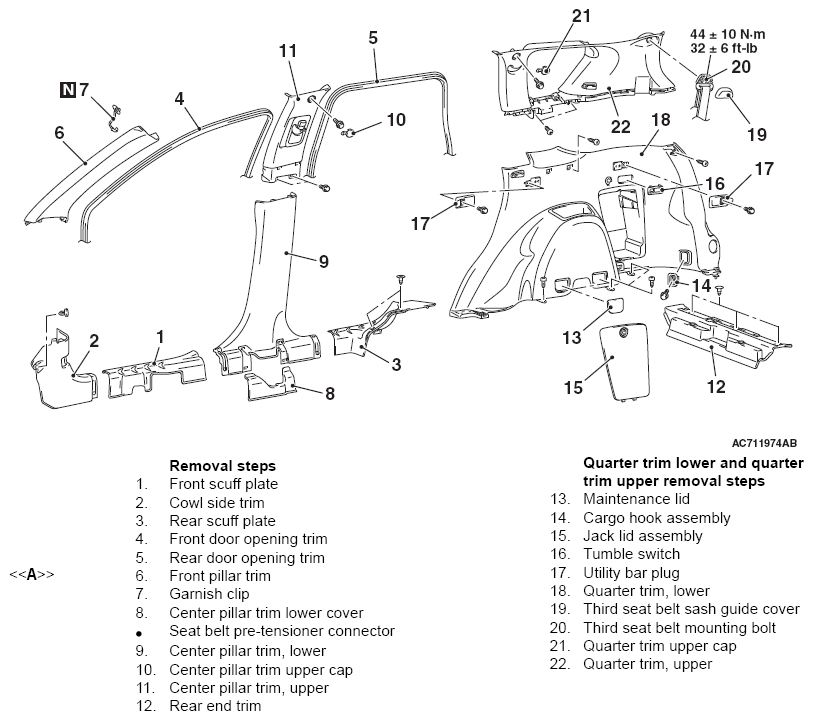

Fig 1: Identifying Interior Trim Removal And Installation
G07044461Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
