Removal And Installation <2.4L Engine>

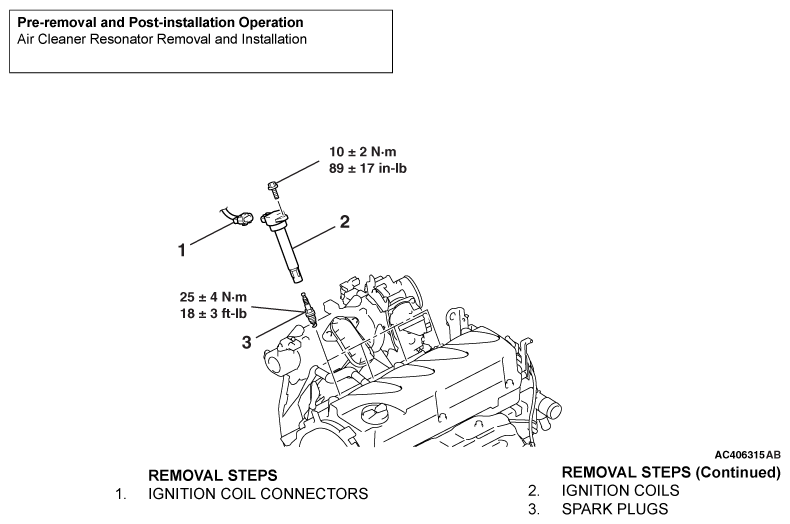

Fig 1: Removal/Installation Of Ignition Coil With Torque Specifications (2.4L Engine)
G06692022Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
