Clip Position

WARNING: This page is about a different variant/trim than selected.

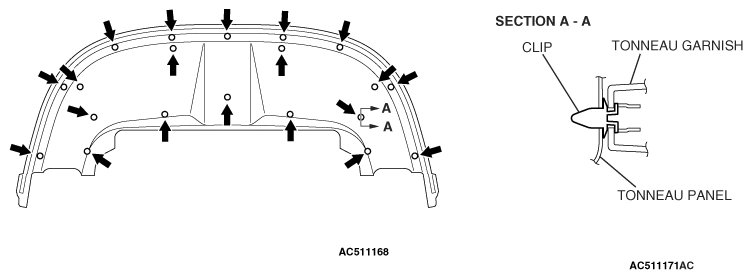

Fig 1: Tonneau Panel Assembly (Clip Position)
G06686633Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
