<3.8L Engine>

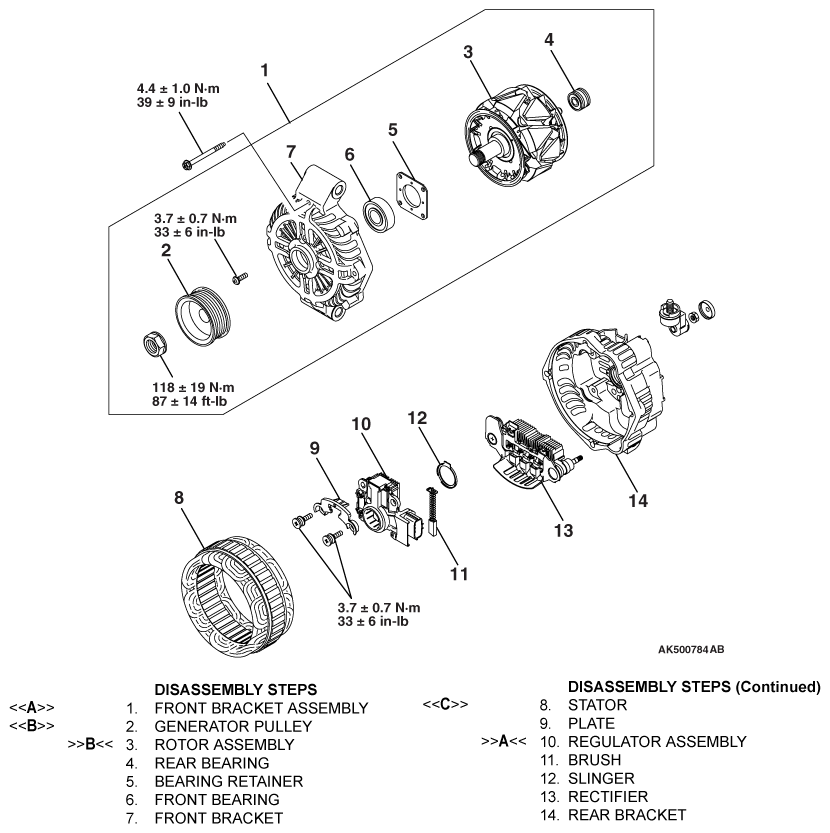

Fig 1: Generator Disassembly And Assembly With Torque Specifications - 3.8L Engine
G06691967Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
