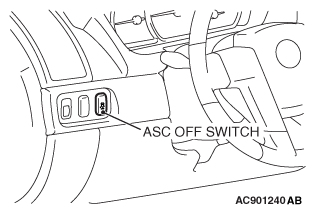

ASC Off Switch
This switch is mounted on the left side of the instrument panel, and turns on and off the system.
ASC OFF SWITCH OPERATION AND THEIR RESPECTIVE CONTROLS
ASC OFF SWITCH OPERATION AND THEIR RESPECTIVE CONTROLS
| ASC OFF SWITCH OPERATION | ACTIVE STABILITY CONTROL | TRACTION CONTROL | |
|---|---|---|---|
| BRAKE CONTROL | ENGINE CONTROL | ||
| Not operated | Active | Active | Active |
| Operated (Press and hold for 3 seconds) | Inactive | Inactive | Inactive |
| Operated (Press and hold for 15 seconds) | Active | Active | Active |
NOTE:
The ASC returns to the active state automatically when the ignition switch is turned to the ON position.
