Removal And Installation: Notes

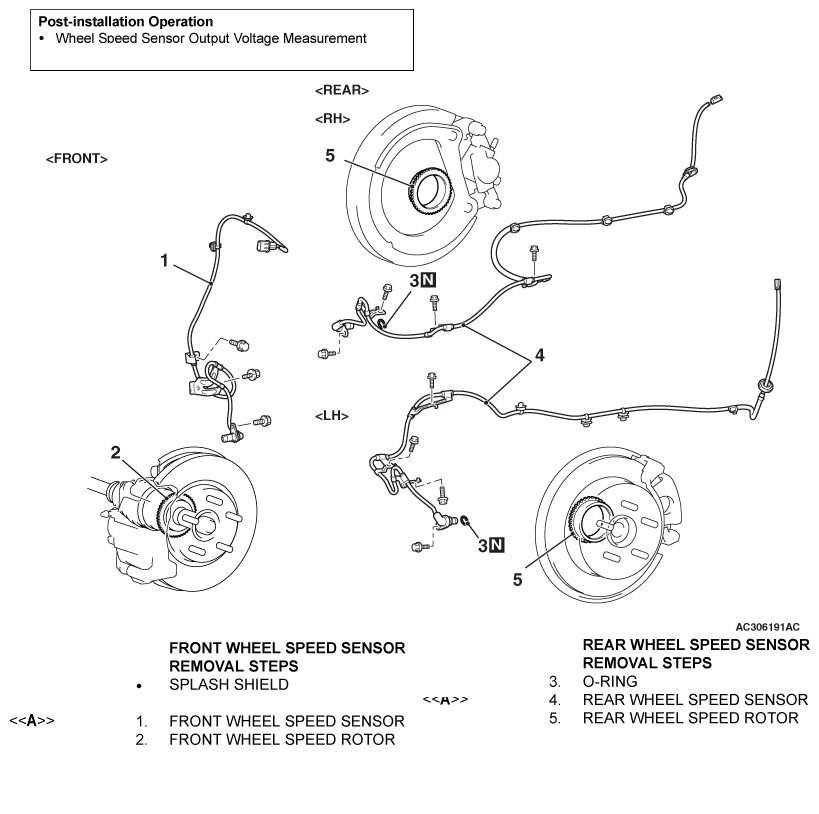

Fig 1: Wheel Speed Sensor & Related Components
G06710628Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Front wheel speed rotors are integrated with the BJ assembly of the drive shaft and cannot be disassembled.
NOTE: Rear wheel speed rotors are integrated with the rear hub assembly and cannot be disassembled.
