2.4L Engine

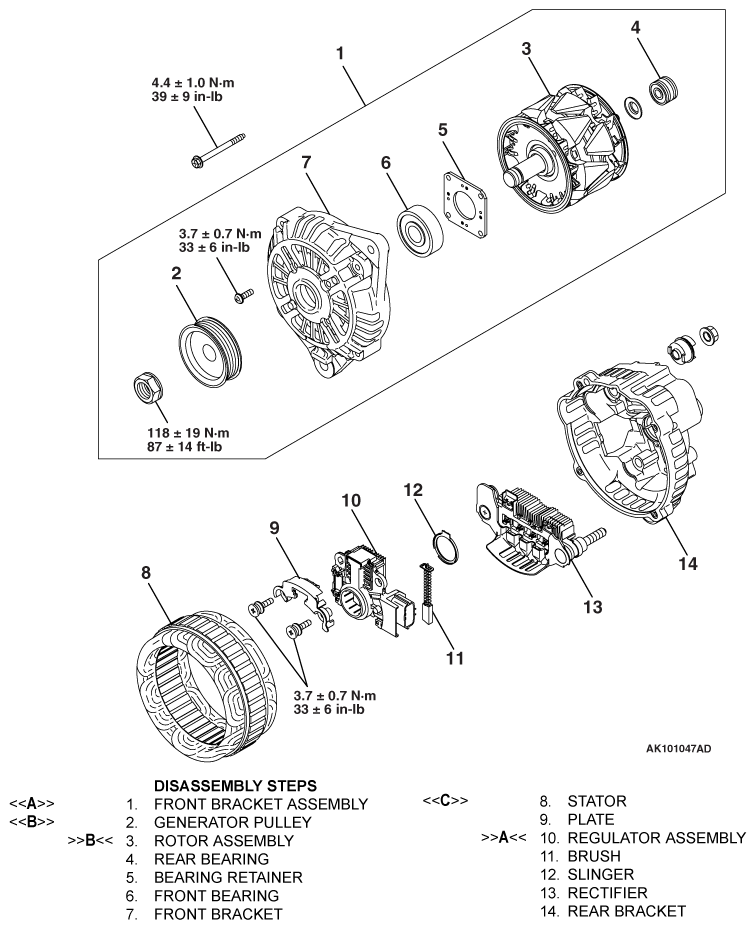

Fig 1: Exploded View Of Generator With Torque Specifications (2.4L Engine)
G06715841Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
