OEM Component Locations: Sensor

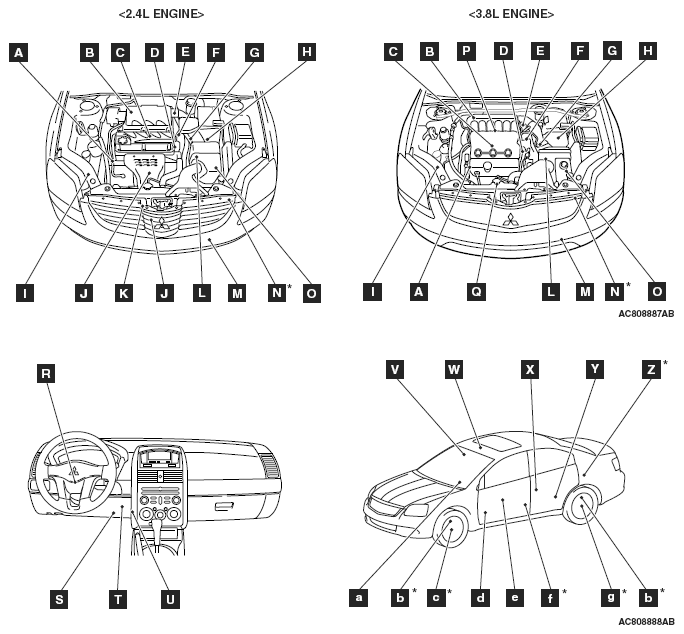

SENSOR REFERENCE CHART

NAME	SYMBOL

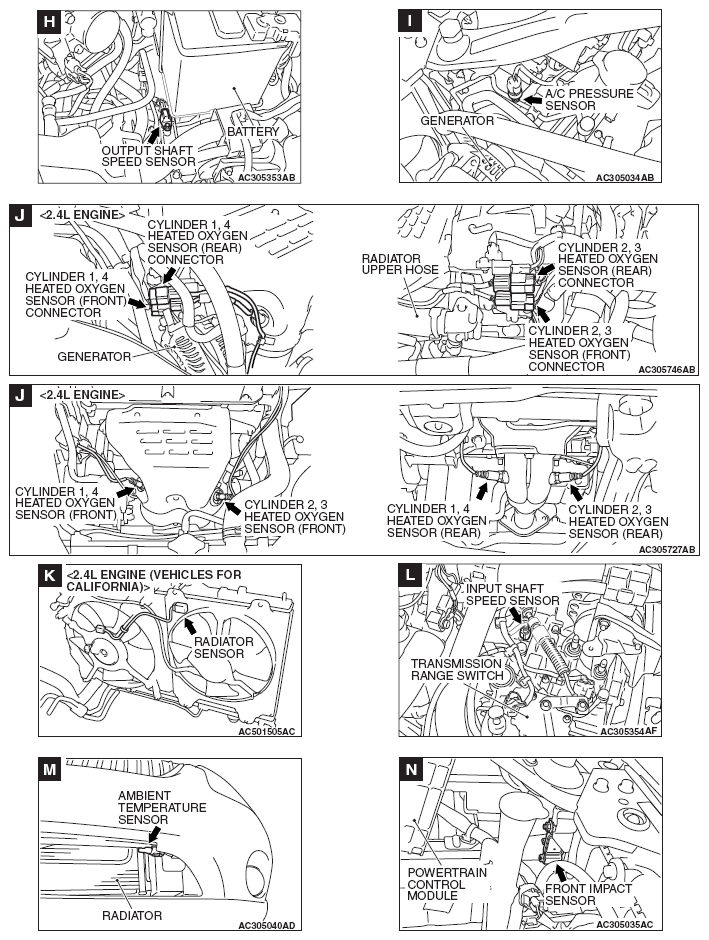

A/C pressure sensor	I

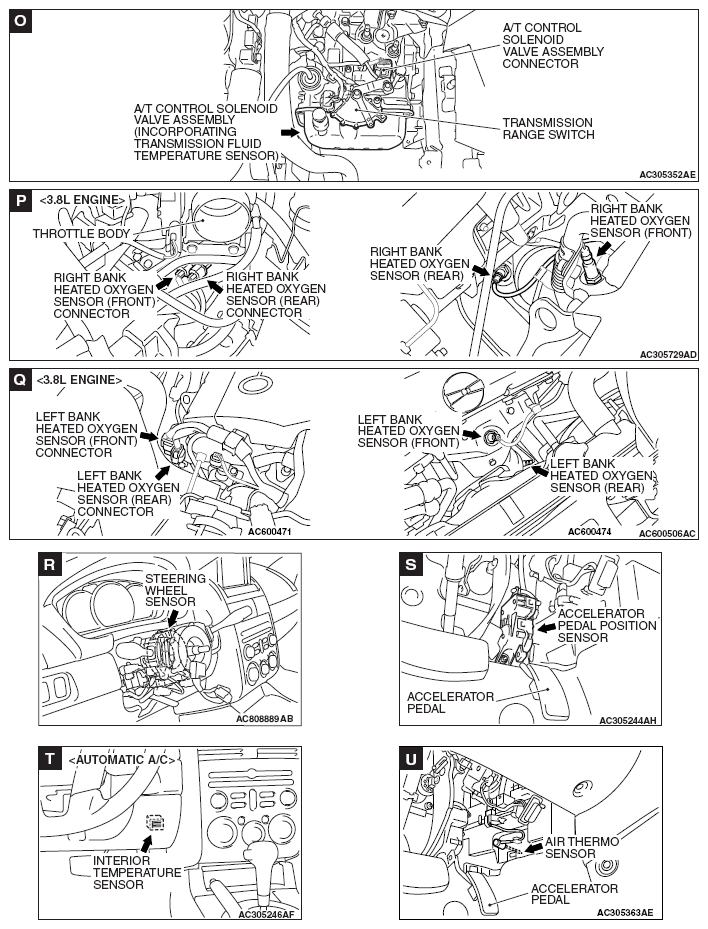

A/T control solenoid valve assembly (Incorporating transmission fluid temperature sensor)	O
Accelerator pedal position sensor	S
Air thermo sensor	U
Ambient temperature sensor	M

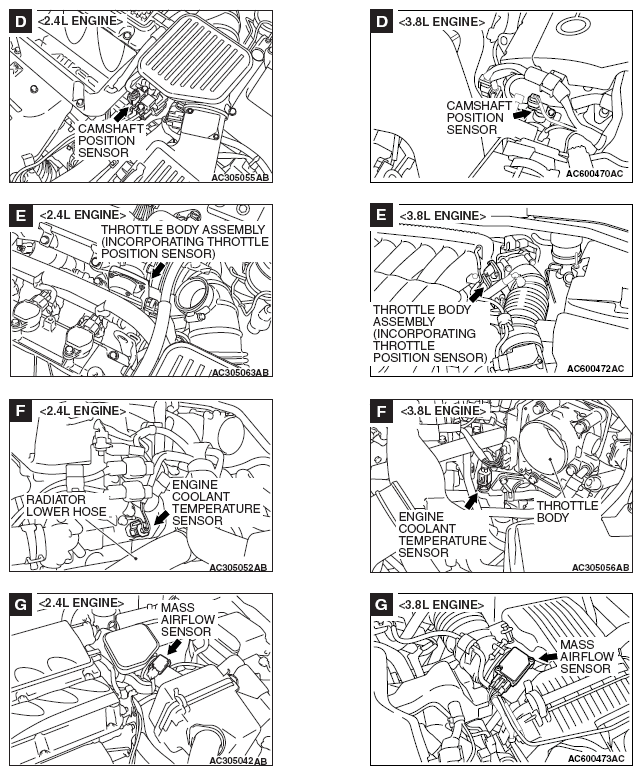

Camshaft position sensor	D

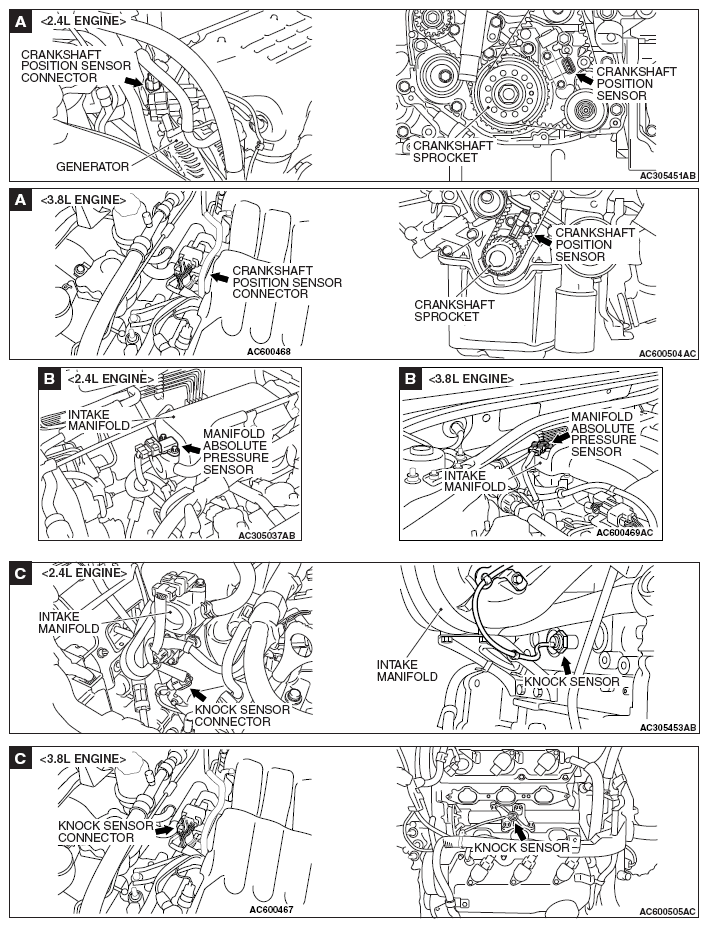

Crankshaft position sensor	A
Cylinder 1, 4 heated oxygen sensor (front) < 2.4L Engine >	J
Cylinder 1, 4 heated oxygen sensor (rear) < 2.4L Engine >	J
Cylinder 2, 3 heated oxygen sensor (front) < 2.4L Engine >	J
Cylinder 2, 3 heated oxygen sensor (rear) < 2.4L Engine >	J
Engine coolant temperature sensor	F
Front impact sensor	N

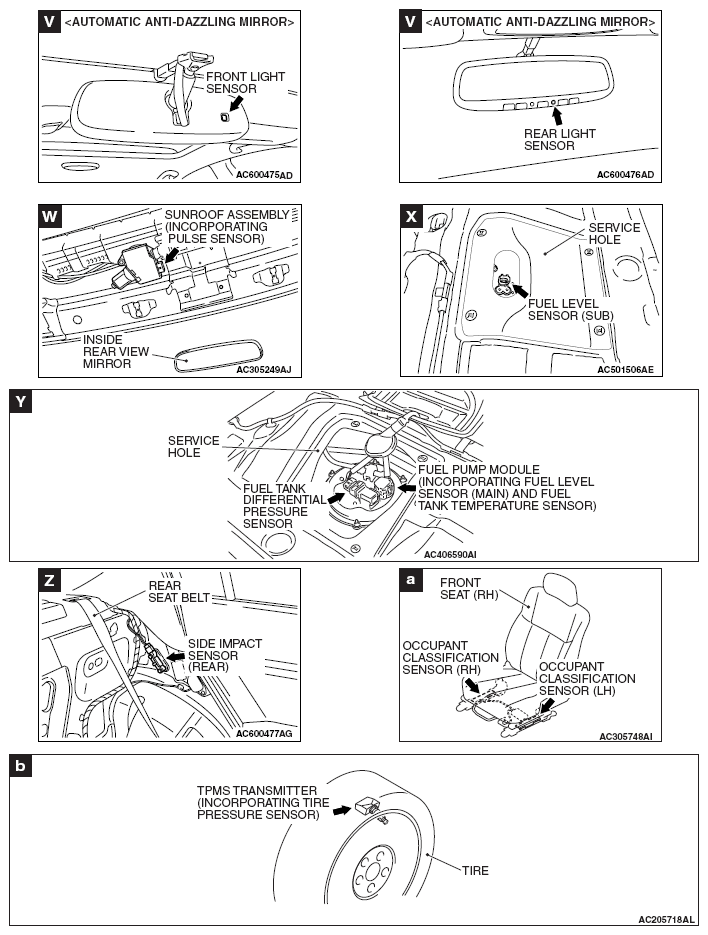

Front light sensor < Automatic anti-dazzling mirror >	V
Fuel level sensor (sub)	X
Fuel pump module (Incorporating fuel level sensor (main) and fuel tank temperature sensor)	Y
Fuel tank differential pressure sensor	Y
G and yaw rate sensor	e
Input shaft speed sensor	L
Interior temperature sensor < Automatic A/C >	T
Knock sensor	C
Left bank heated oxygen sensor (front) < 3.8L Engine >	Q
Left bank heated oxygen sensor (rear) < 3.8L Engine >	Q
Manifold absolute pressure sensor	B
Mass airflow sensor	G
Occupant classification sensor (LH), (RH)	a
Output shaft speed sensor	H
Radiator sensor < 2.4L Engine (Vehicles for California) >	K
Rear light sensor < Automatic anti-dazzling mirror >	V
Right bank heated oxygen sensor (front) < 3.8L Engine >	P
Right bank heated oxygen sensor (rear) < 3.8L Engine >	P
Seat slide sensor	d
Side impact sensor (Front)	f
Side impact sensor (Rear)	Z
Steering wheel sensor	R
Sunroof assembly (Incorporating pulse sensor)	W
Throttle body assembly (Incorporating throttle position sensor)	E
TPMS transmitter (Incorporating tire pressure sensor)	b

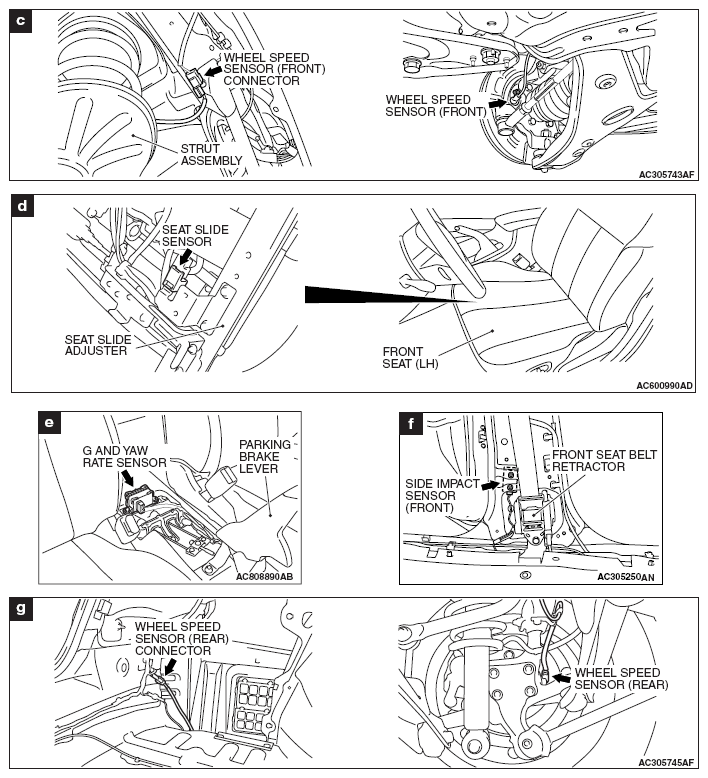

Wheel speed sensor (front)	c
Wheel speed sensor (rear)	g
